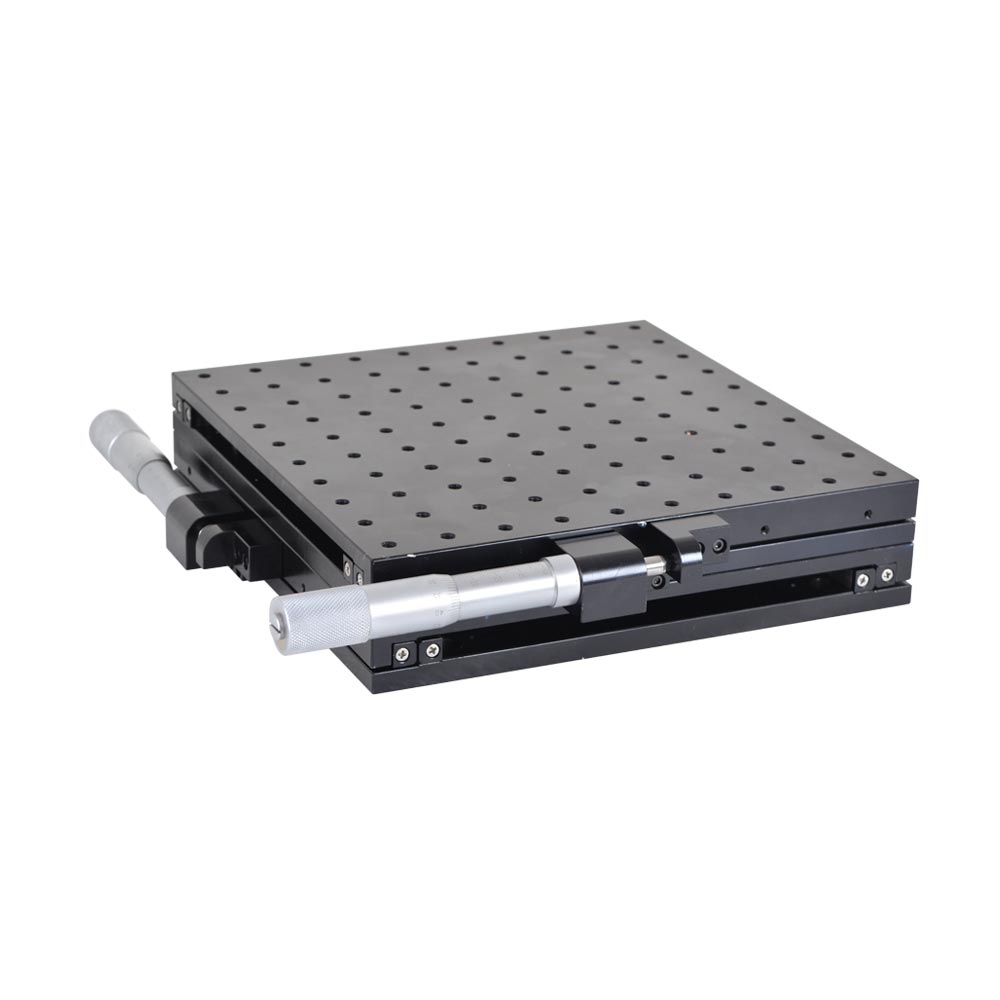

These are heavy duty XY stages capable of supporting comparative heavy loads. These stages find applications in positioning heavy loads. For example, a microscope can be placed on the stage and positioned precisely. Standard stages have slots for M6 screws on the base for fixing rigidly to any platform. The drive can be either by lead screw or micrometer. Crossed roller based linear guides are used for achieving precision linear motion.
The guide ways are factory preloaded to eliminate play and wobble. Coefficient of friction is less than 0.003. Standard stages are constructed in aluminium alloy and finished by black anodizing.
► Travel : 50 mm
► Carriage Size : 250 mm x 250 mm
► Height : 60 mm
► Drive : Micrometer
► Drive Options : side drive
► Micrometer screw pitch : 0.5 mm
► Least Count : 10 micrometer
► Load Capacity : 50 kg in vertical
► Straightness : 5 microns
► Mounting holes : M6 Tapped holes
► Material : Aluminium
► Guide way : Hardened V grooved guide ways (magnetic)

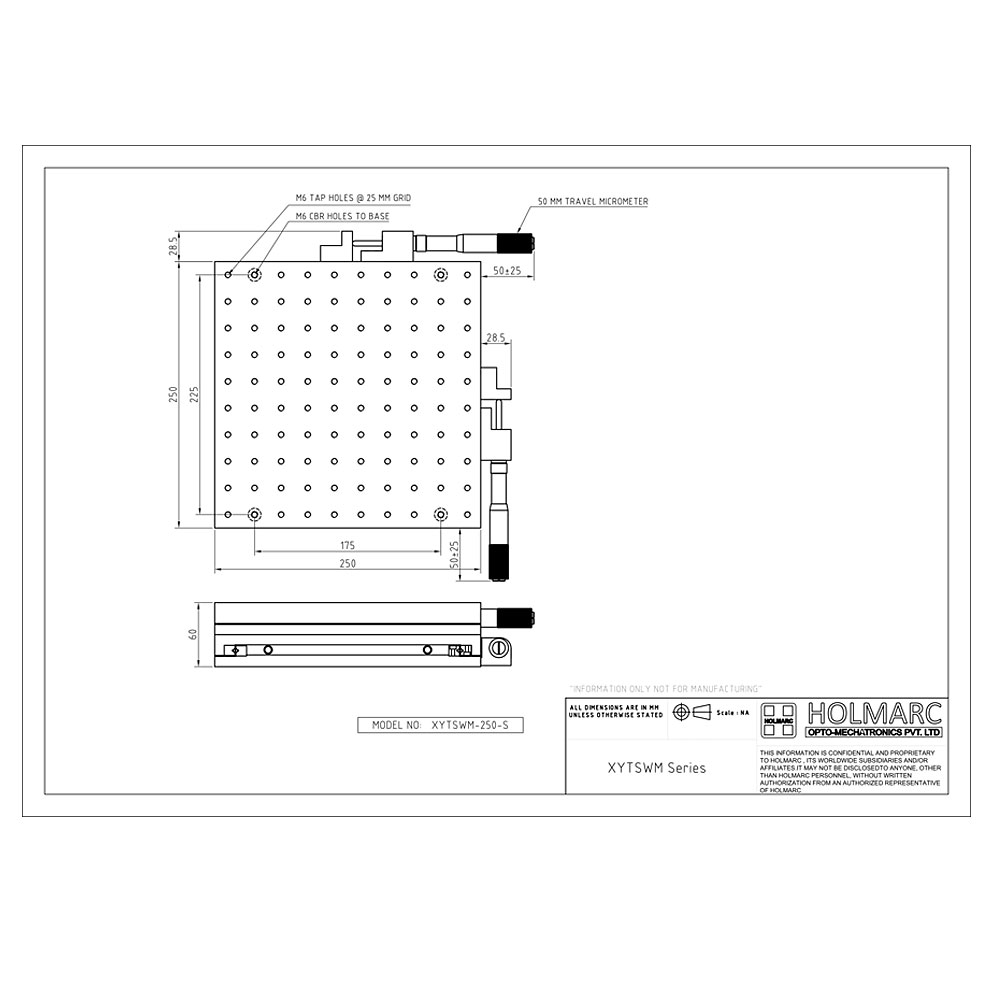

Model : XYTSWM-250-S
