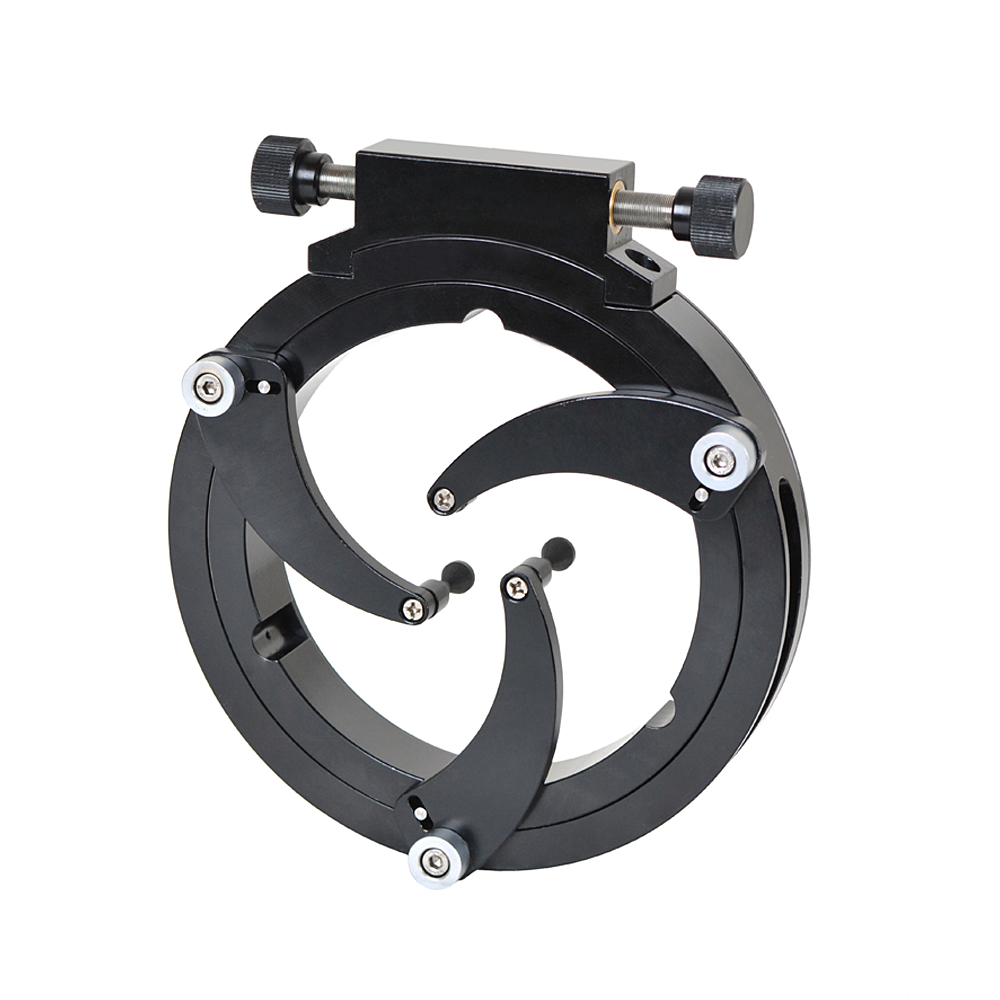

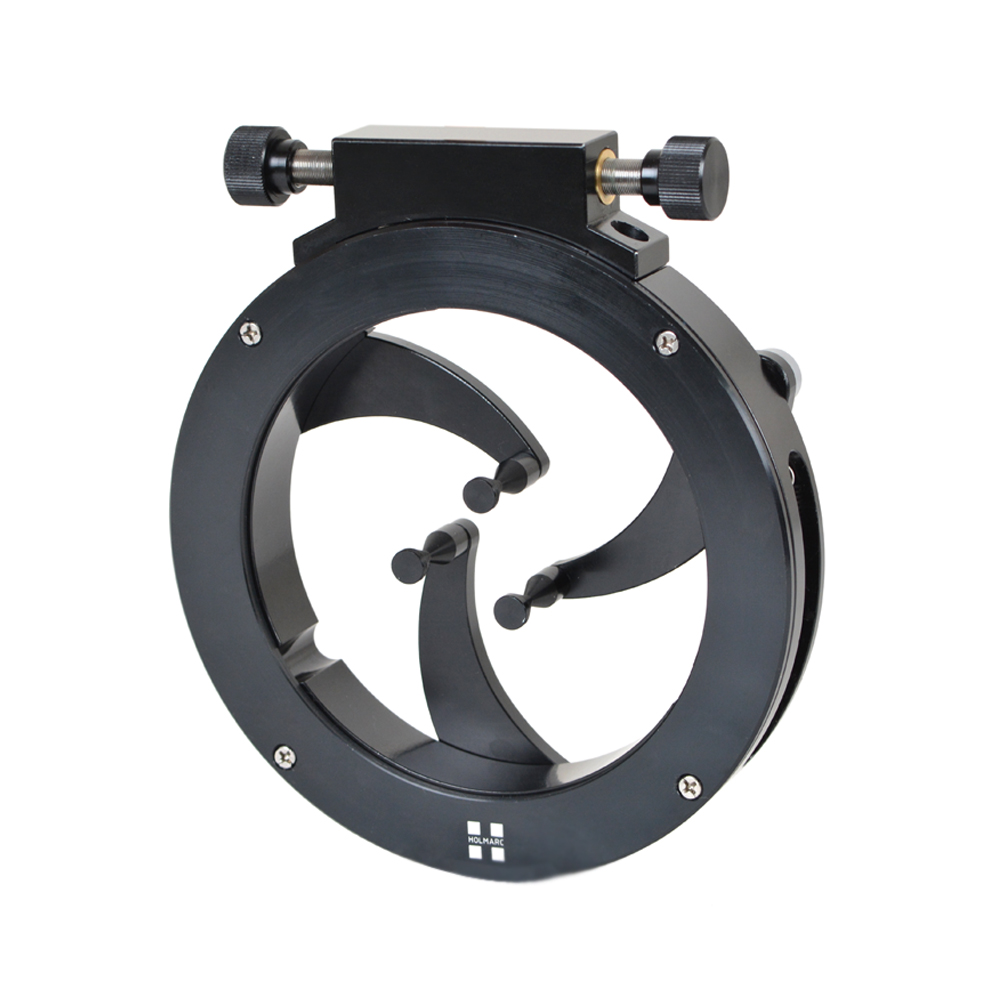

This self centering mount can be used to holed comparatively large optic using self centering jaws. These jaws are held in position by adjustable lead screws for firm clamping.
► Optics size : 6 – 100 mm
► Maximum optics diameter : 104 mm
► Maximum thickness : 22 mm
► Locking : by two screw adjusters
► Sensitivity : 4 arc sec.
► Mounting hole : M6 Tapped hole for post mounting
Model : SCLM-AK-100
Exworks-Kochi : Apply coupon ‘Exworks-Kochi’ in the ‘Checkout page’ or in the ‘Cart page’ in case you want to use your carrier for shipping and delivery.
