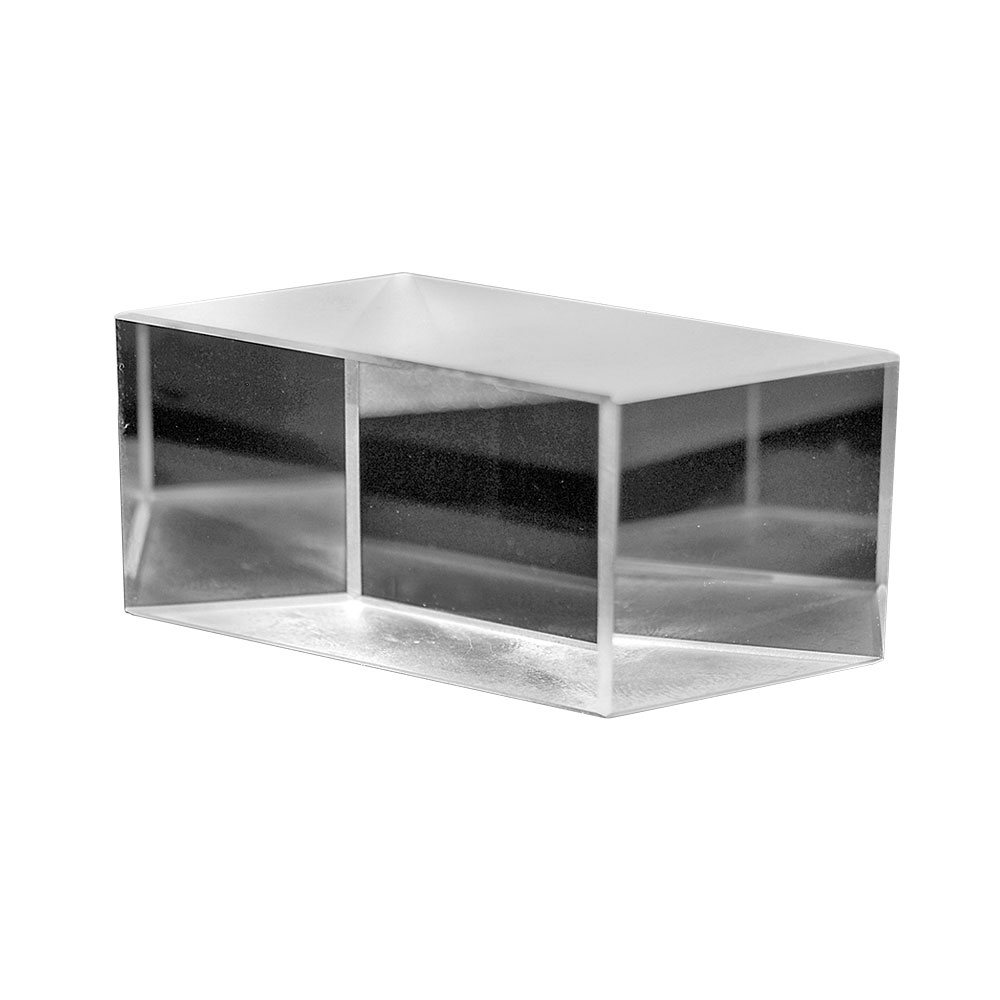

Rhomboid prism is used to displace the incident beam without affecting the image orientation. This prism can be used to displace the optical center line and the displacement is equal to the length of the prism.
► Material : BK7 or equivalent
► Surface quality : 40 – 20 ( scratch-dig )
► Dimensional Tolerance : + 0.0, -0.2 mm
► Angles tolerance : ± 5 arc sec
► Beam deviation : ± 30 arc sec
► Surface flatness : λ / 4 @ 632.8 nm
Model : HO-RHB-35.4
Exworks-Kochi : Apply coupon ‘Exworks-Kochi’ in the ‘Checkout page’ or in the ‘Cart page’ in case you want to use your carrier for shipping and delivery.
