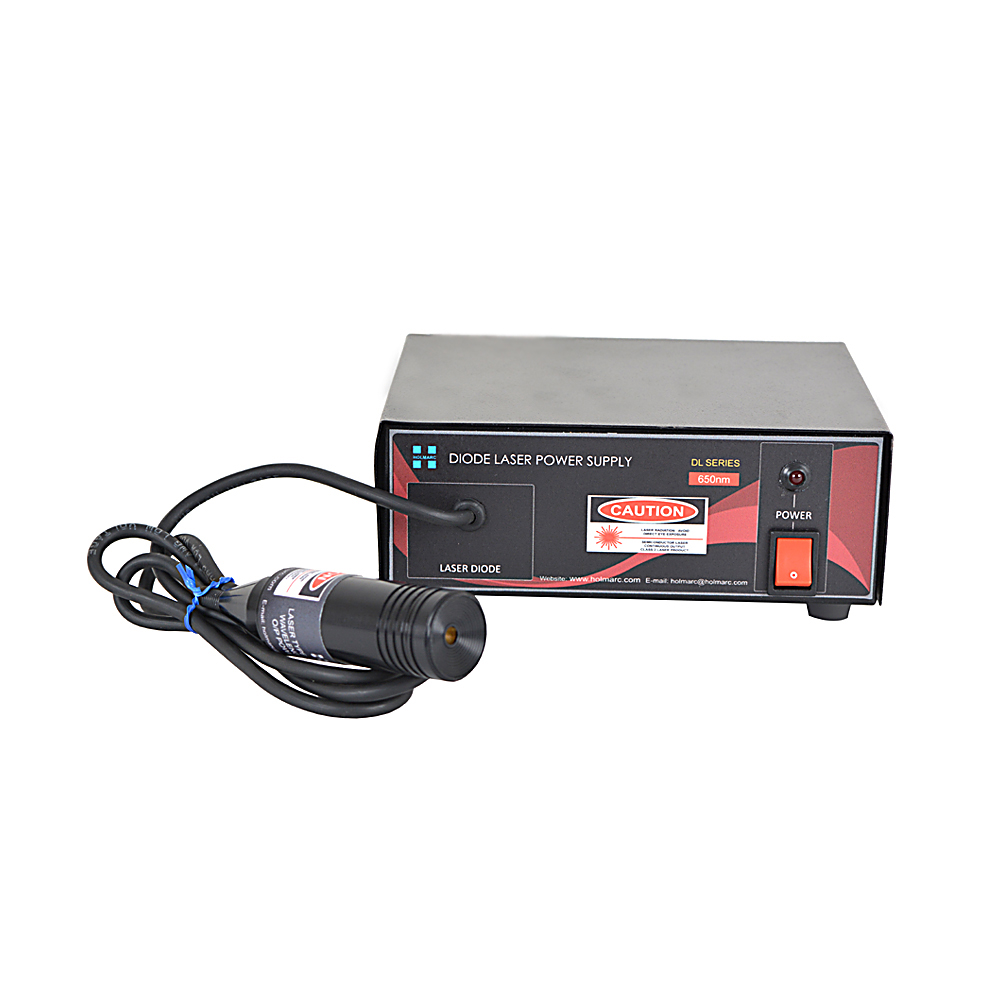

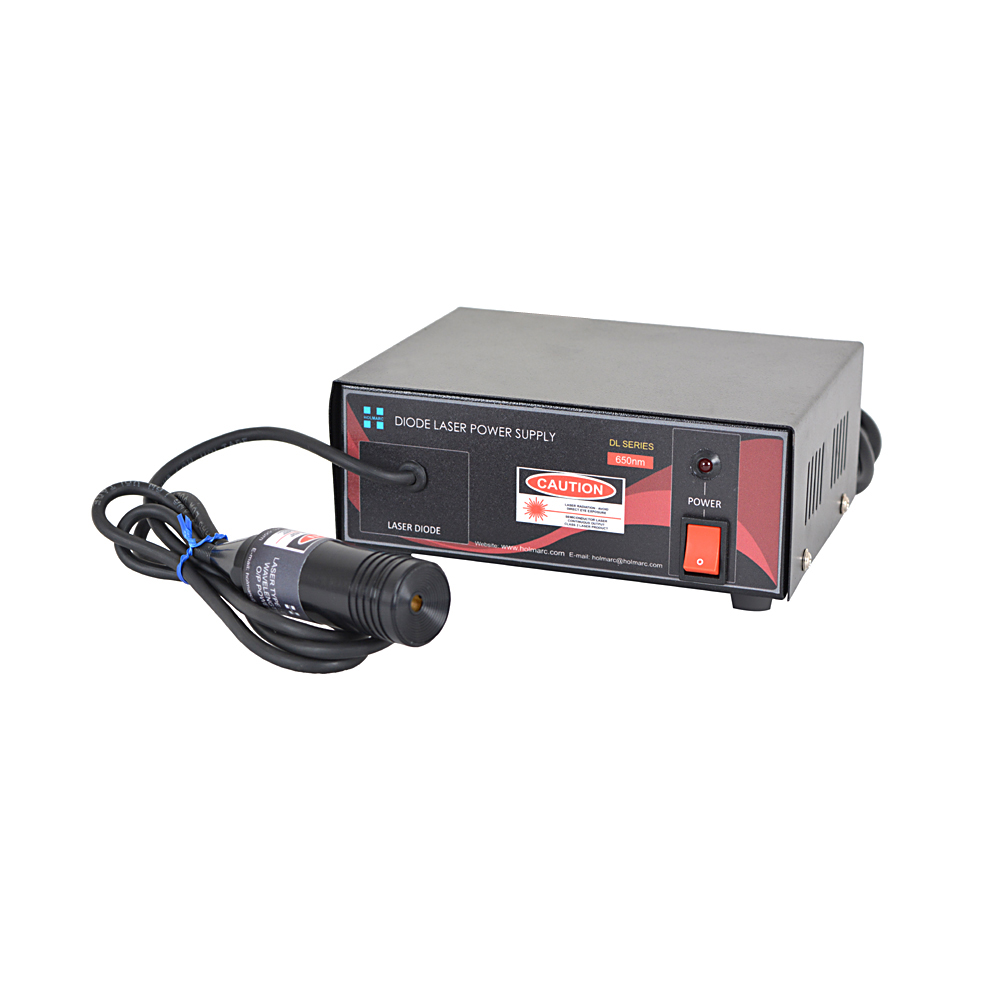

Holmarc’s diode laser module consists of a laser diode along with collimating optics enclosed in a metallic case and a power supply with Automatic Power Control (APC). The laser module has 25mm diameter and 50mm length so that it can be held conveniently in a kinematic or rigid mount. Collimating lens is an aspheric lens with anti-reflection coating. The soft start feature of the power supply assures smooth switch on and long life.
► Wave length : 655 nm
► Optical power : 3 mW
► Supply Voltage : 230 VAC
► Operating Current : 28 mA
► Operating Temperature : 10°C~35°C
► Storage Temperature: 0°C~50°C
► Spot Size : < 6.5 mm
► Lifetime : > 3000 hrs
Model : DL-R-3
