Plano – Convex Lens UV Ø75 – 2.3

 25,750.00

Model No. HO-PXLUV75-2.3

Diameter    :    75 mm
Focal Length   :    170 mm
Material   :    UV Fused Silica
Design Wavelength   :    587.6 nm
Effective Focal Length Tolerance   :    ± 1%
Surface Quality   :    40 – 20 (scratch-dig)
Diameter Tolerance   :    +0.0, -0.2mm
Clear Aperture   :    > 90% of Diameter
Centering Tolerance   :    ≤3 arc min
Coating : Uncoated

Category:

Availability: 1 in stock

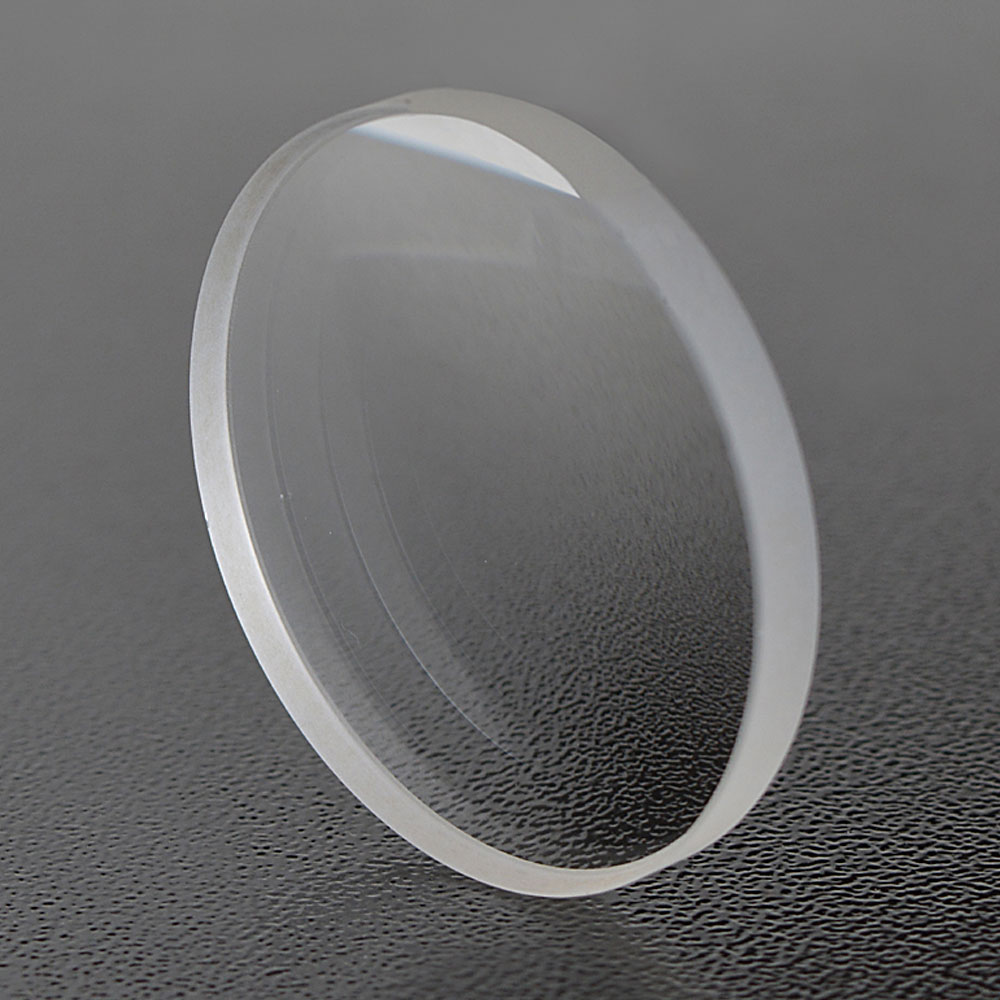

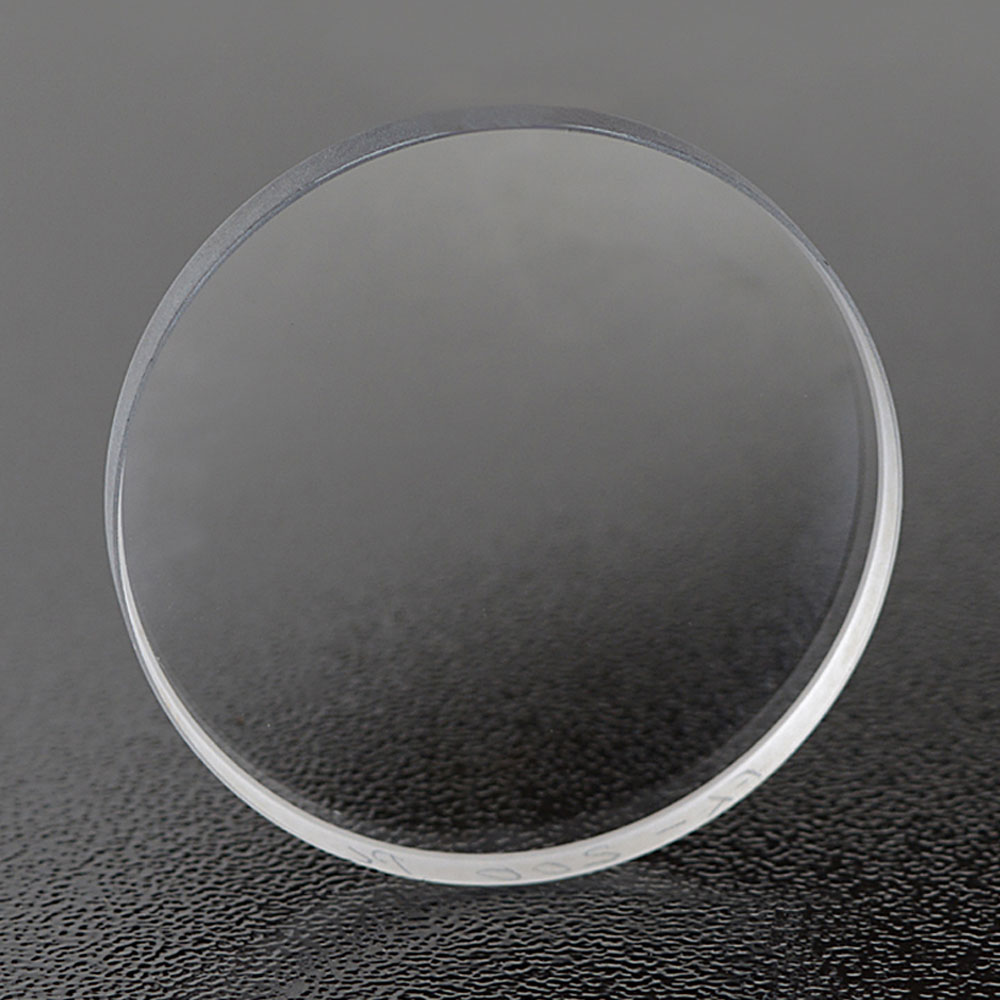

Plano-convex lenses are positive spherical lenses having convex surface on one side and flat surface on the other. These lenses find applications in collecting, focusing and collimating light.

Holmarc’s Plano-convex lens are available either uncoated or with single layer AR coating. Broadband multi-layer anti-reflection coating can be done on custom basis.

Diameter    :    75 mm
Focal Length   :    170 mm
Material   :    UV Fused Silica
Design Wavelength   :    587.6 nm
Effective Focal Length Tolerance   :    ± 1%
Surface Quality   :    40 – 20 (scratch-dig)
Diameter Tolerance   :    +0.0, -0.2mm
Clear Aperture   :    > 90% of Diameter
Centering Tolerance   :    ≤3 arc min
Coating : Uncoated

Model No. HO-PXLUV75-2.3



# Dispatch within 3 days



Exworks-Kochi : Apply coupon ‘Exworks-Kochi’ in the ‘Checkout page’ or in the ‘Cart page’ in case you want to use your carrier for shipping and delivery.

Weight .45 kg
