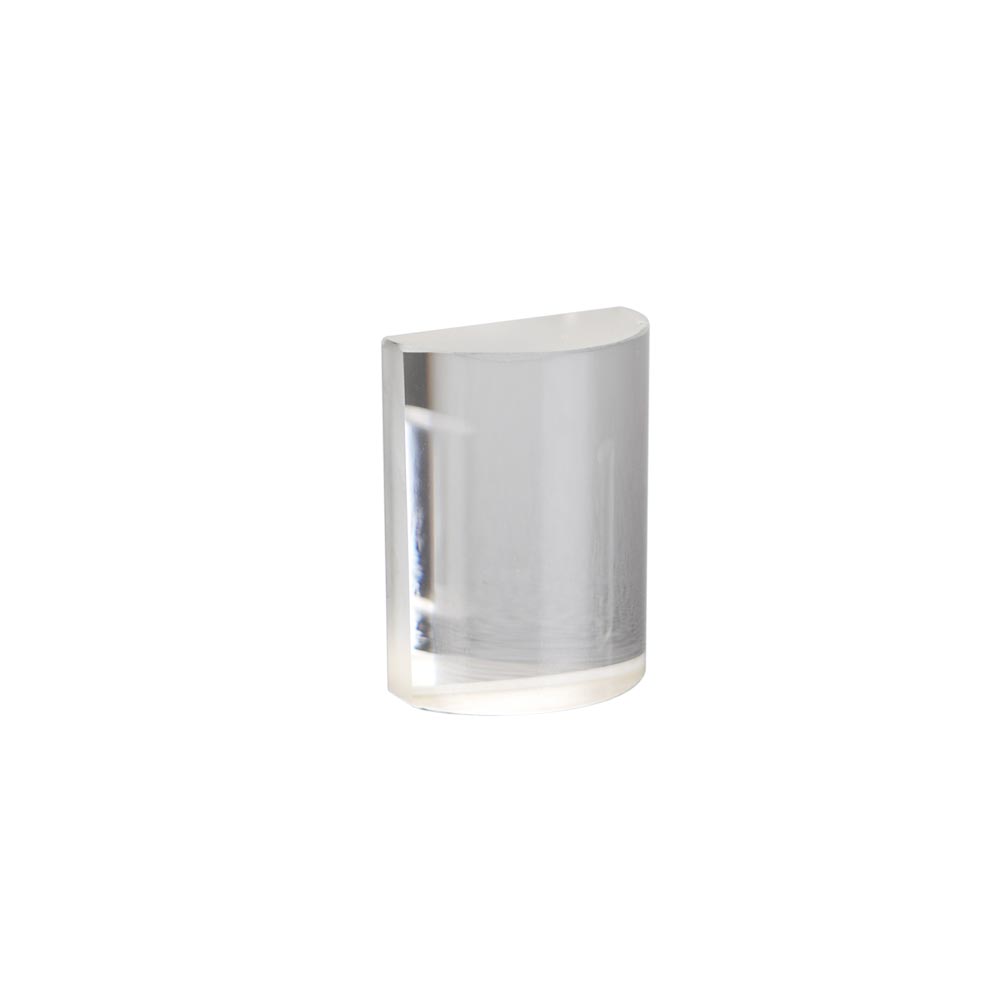

Cylindrical Lenses are well suited for applications which require magnification in one dimension only. Plano-concave lenses have a negative focal length and are used for image reduction or to spread light. Plano-convex lenses have a positive focal length, which makes them ideal for collecting and focusing light for many imaging applications.
► Material : H-K9L(BK7 equivalent)
► Focal Length (mm) : 100 mm
► Diameter(mm) : 25.4 mm
► Effective Focal Length Tolerance : ± 2%
► Length Tolerance : +0.0, -0.2 mm
► Height Tolerance : +0.0, -0.2 mm
► Centering Tolerance : ≤ 3 arc min.
► Surface quality : 40 – 20 ( scratch-dig )
► Clear aperture : > 90 % of surface dimensions
► Design wavelength : 587.6 nm
► Coating : Uncoated
# Dispatch within 3 days
Model No. HO-PXCL-C25-100
Exworks-Kochi : Apply coupon ‘Exworks-Kochi’ in the ‘Checkout page’ or in the ‘Cart page’ in case you want to use your carrier for shipping and delivery.
