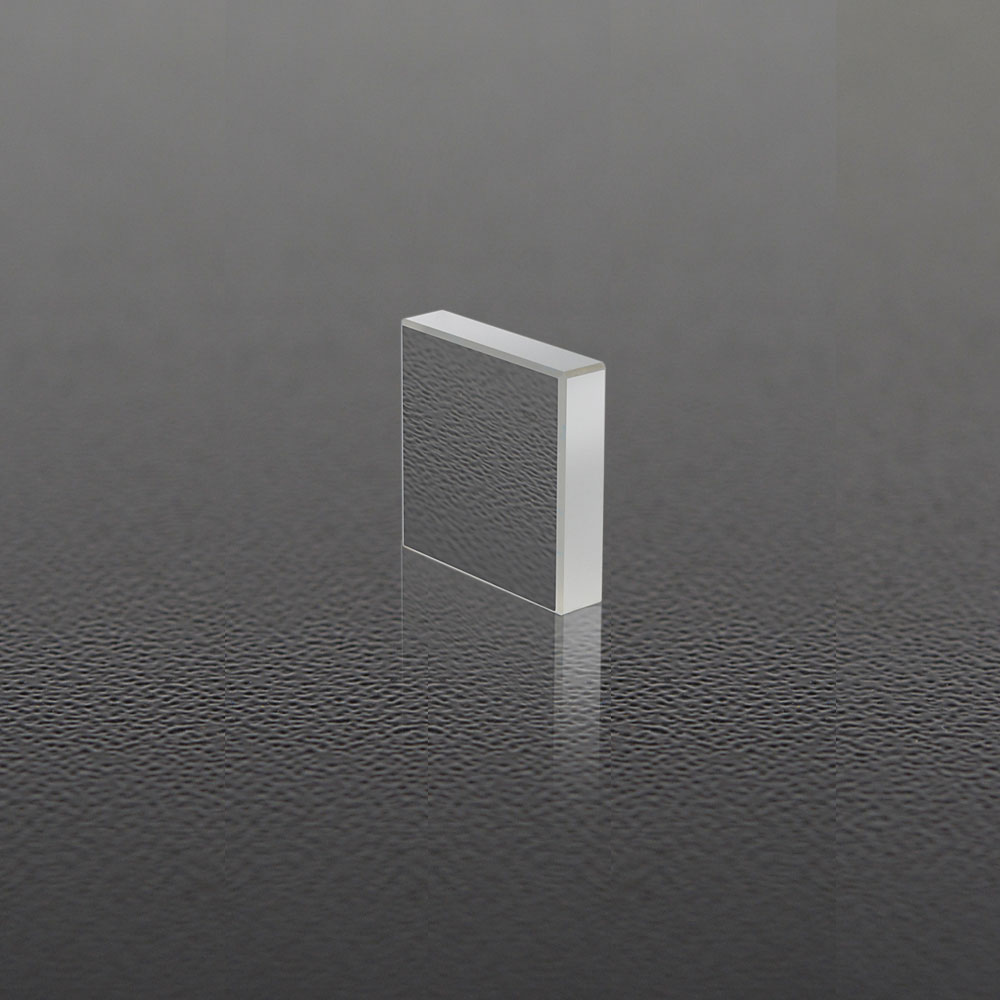

Plano Aluminium Mirror PSMA-B-12.5

 1,400.00

Model No. HO-PSMA-B-12.5

Material : H-K9L(BK7 equivalent)
Size : 12.5 mm x 12.5 mm
Thickness  : 6 mm
Thickness Tolerance : ± 0.2 mm
Dimensional Tolerance : +0.00, -0.2 mm
Parallelism : ≤ 3 arc min
Coating : Protected Aluminium

Category:

Availability: 20 in stock

Aluminium Mirrors offer high reflection throughout ultraviolet, visible and NIR region. The mirror coating consists of an Aluminium layer and a very thin protective coating.

Material : H-K9L(BK7 equivalent)
Size : 12.5 mm x 12.5 mm
Thickness  : 6 mm
Thickness Tolerance : ± 0.2 mm
Dimensional Tolerance : +0.00, -0.2 mm
Clear Aperture : 90% of diameter
Surface Quality : 40 – 20 (Scratch – dig)
Surface Flatness : λ/4 @632.8nm
Parallelism : ≤ 3 arc min
Coating : Protected Aluminium
Reflectivity, Ravg : > 88% @ 450nm – 2µm,
> 93% @ 2µm – 20µm
Damage Threshold : < 200 mJ / cm2 (532nm, 10ns)
Bevel : 0.2 mm x 45°

# Dispatch within 3 days

Model No. HO-PSMA-B-12.5



Exworks-Kochi : Apply coupon ‘Exworks-Kochi’ in the ‘Checkout page’ or in the ‘Cart page’ in case you want to use your carrier for shipping and delivery.

Weight 0.2 kg
