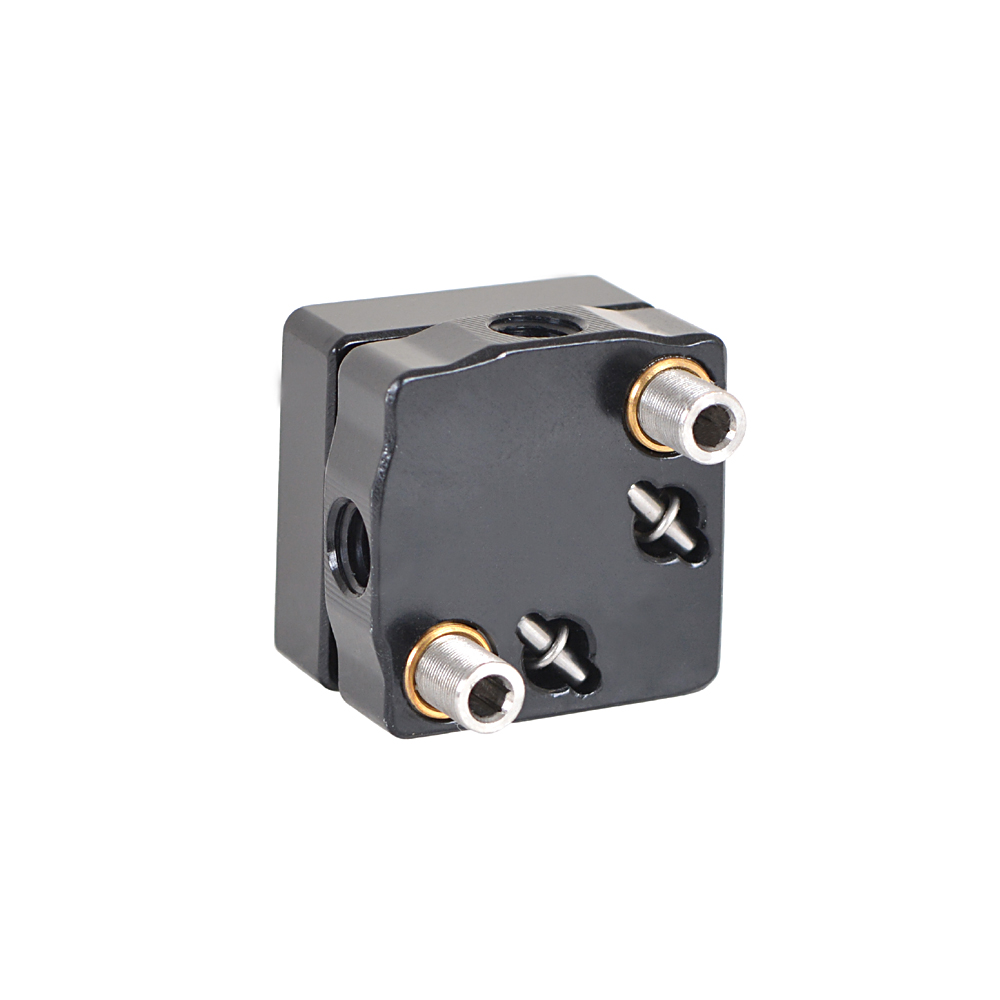

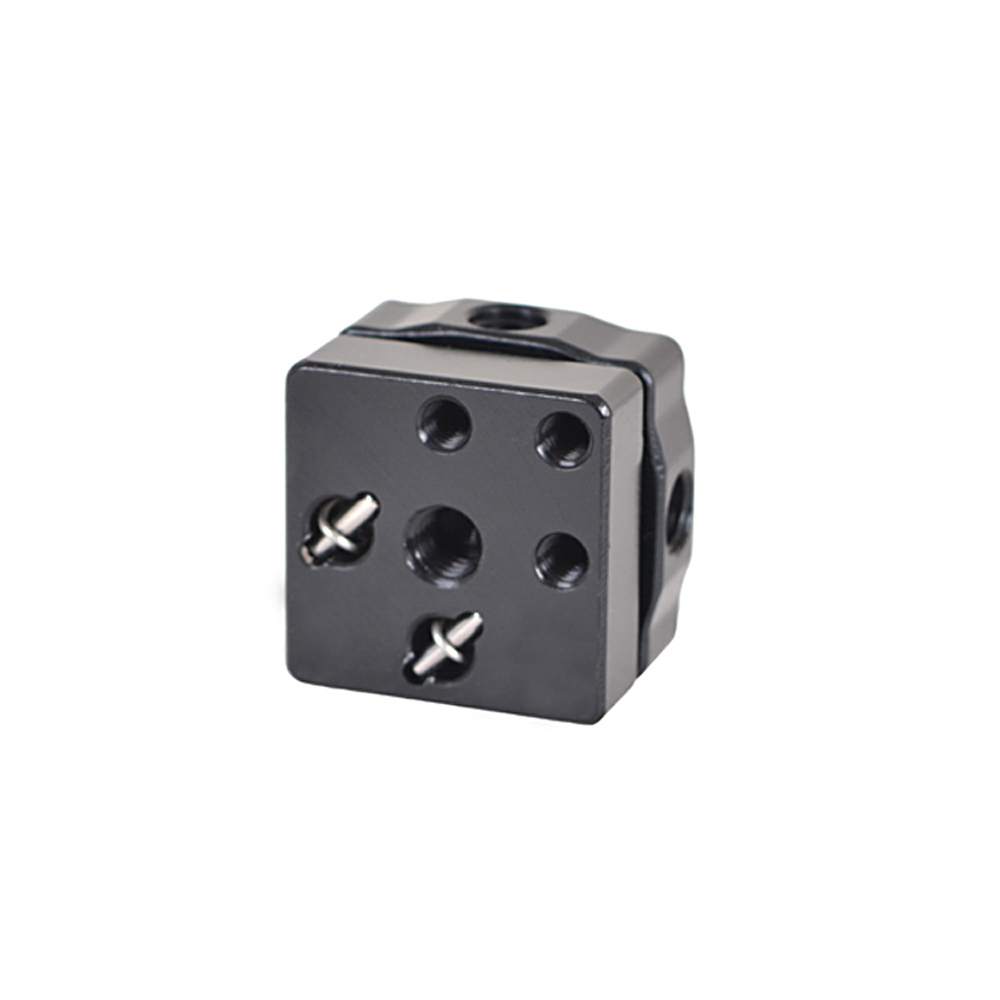

The front surface of the mount is plain. Optics can be fixed to the front surface of the mount using adhesive. Concentric M4 CBR holes and M6 tapped holes are provided at two adjacent sides for vertical mounting of mirror mount. One M6 mounting hole is provided at the back plate for horizontal mounting in prism mounting applications.
► Angular Tip / Tilt : +/- 3°
► Linear Resolution : 0.25 mm ( 100 Tpi )
► Sensitivity : 4 arc sec.
► Mounting Hole : M6
► Mounting Orientation : Vertical & Horizontal
► Material : Aluminium
Model : MM-AK-25
