Pillar Post PLP30

 1,200.00

Model : PLP-30

Length : 30 mm
Stainless steel
Compatible with PPA-PG-12D adapter
Compatible fork, PF-25
M6 mounting holes
Compatible with shims

Category:

Availability: 21 in stock

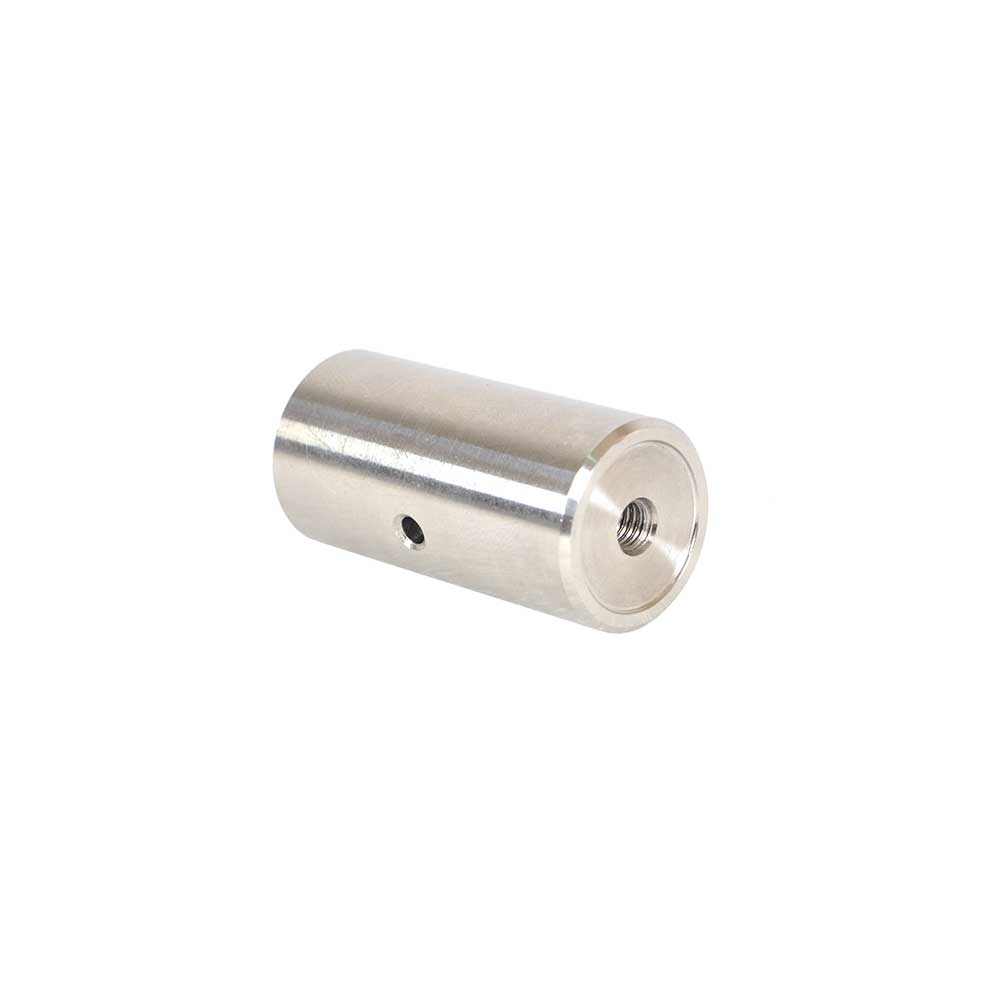

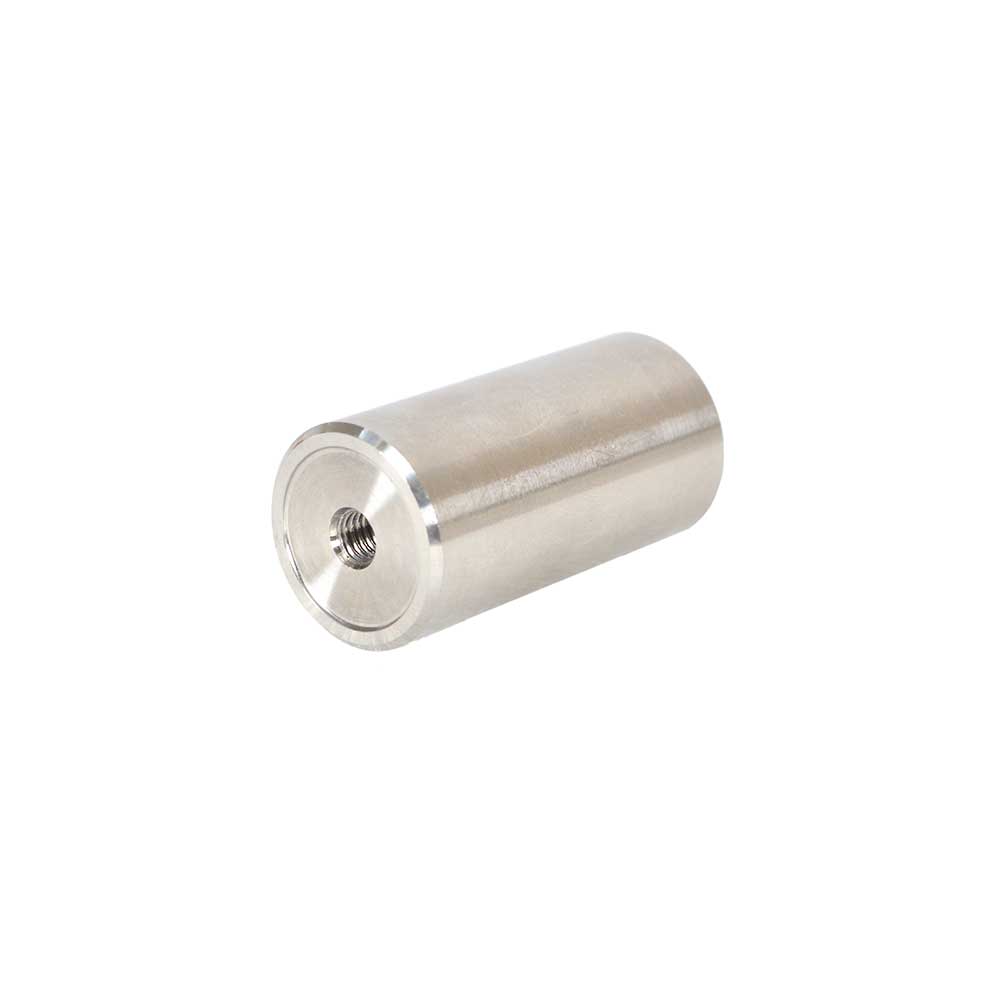

PLP series stainless steel pillar posts are designed to construct rigid structures in various heights. Diameter of the pillar post is 25 mm with precision ground finish. Both ends of the pillar post are tapped suitable for M6 screw. A 3.6 mm diameter hole is provided on the surface of the post for providing extra torque while tightening components on it. We can use 3.5 mm allen key or a screwdriver with less than 3.6 mm diameter for tightening. By using pedestal adapter PPA-PG-12D and pedestal fork PF 25 we can fix the pillar post to the base plate. Pedestal shims can be used to raise height with in 0.1mm increments while setting up optical experiments.

Length : 30 mm
Stainless steel
Compatible with PPA-PG-12D adapter
Compatible fork, PF-25
M6 mounting holes
Compatible with shims

Model : PLP-30



Exworks-Kochi : Apply coupon ‘Exworks-Kochi’ in the ‘Checkout page’ or in the ‘Cart page’ in case you want to use your carrier for shipping and delivery.

Weight .8 kg
