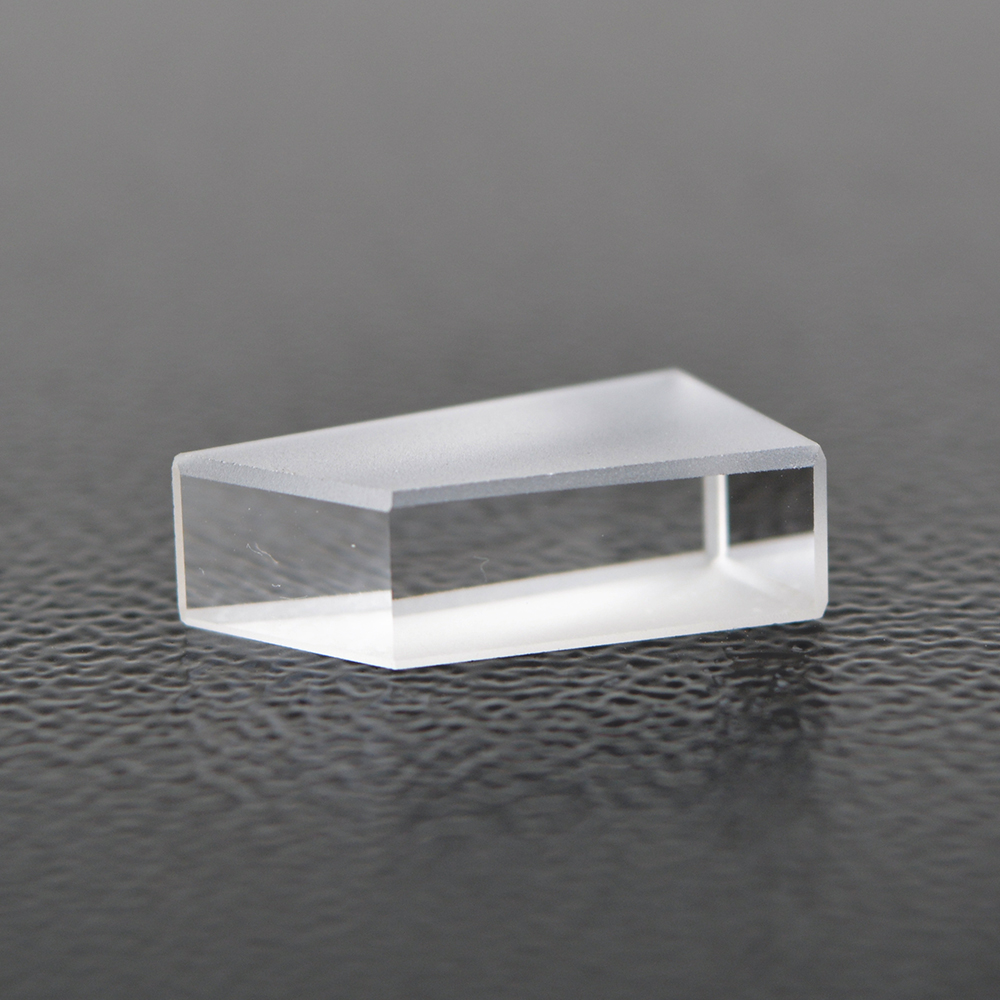

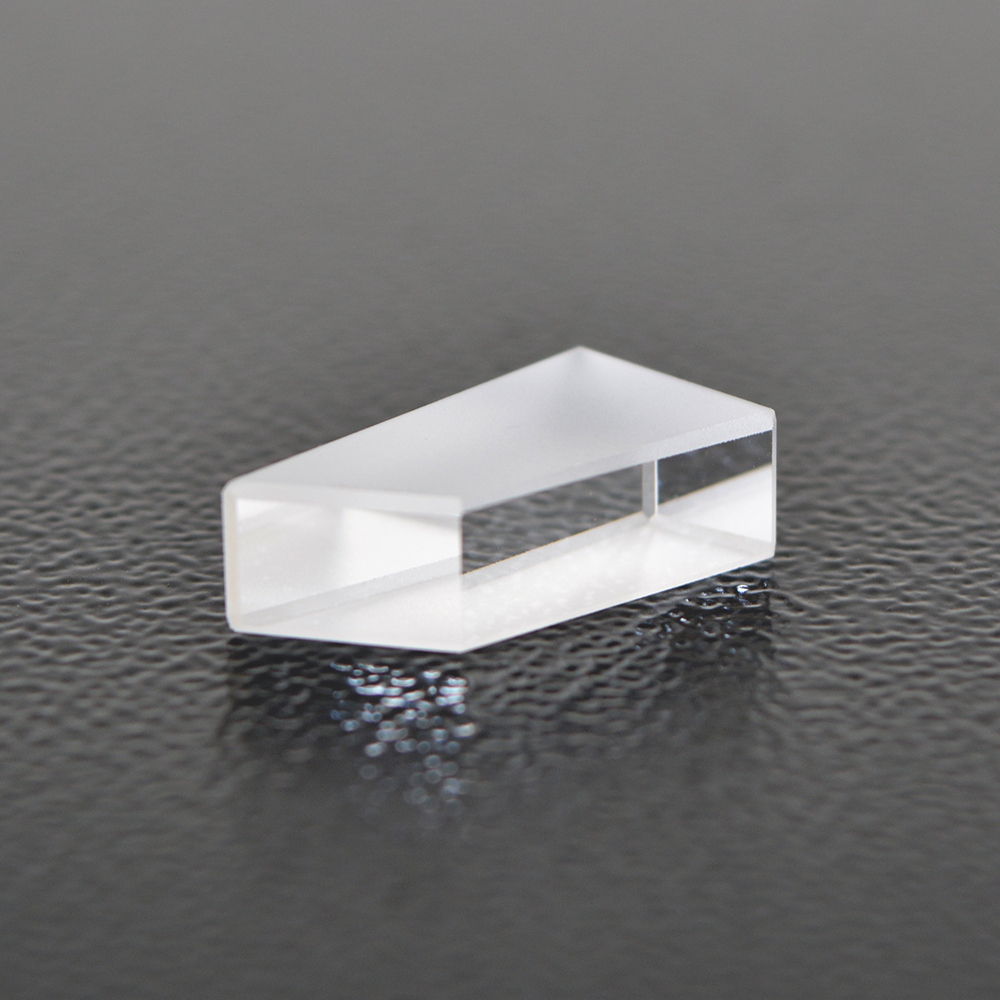

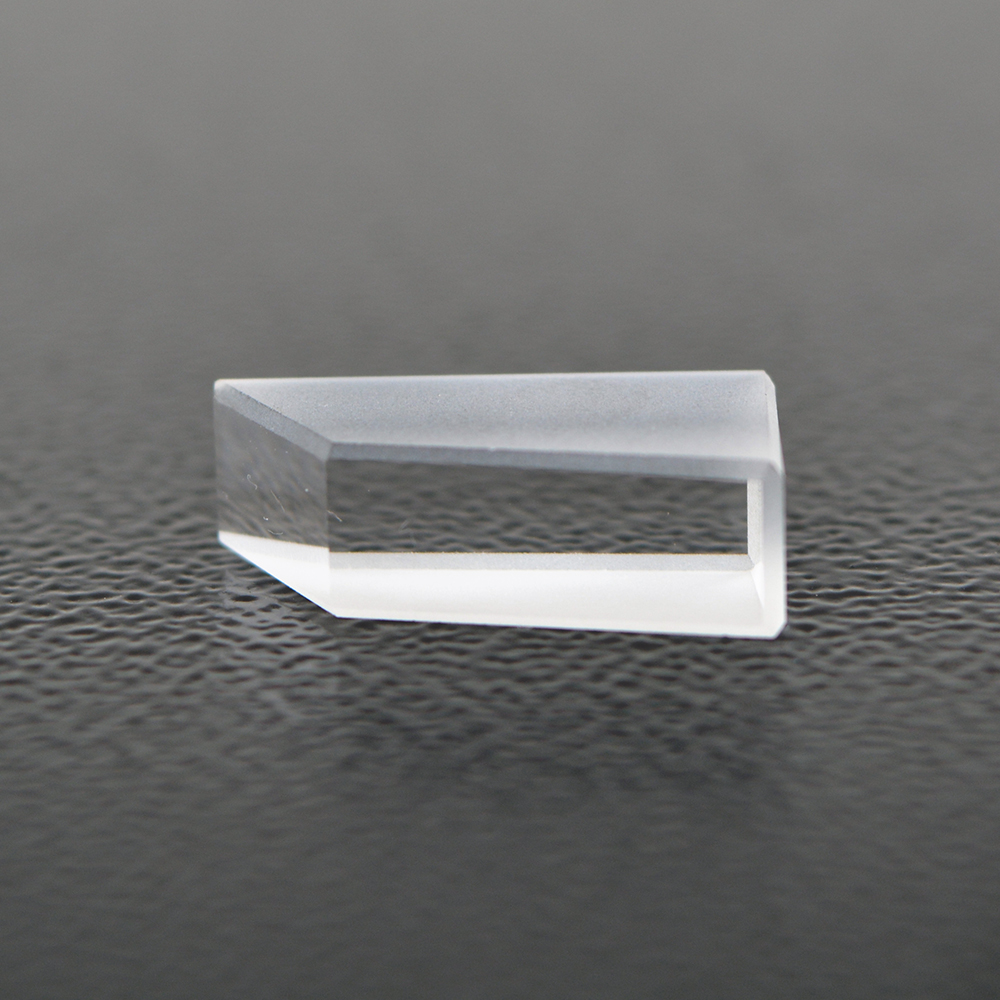

Pellin Broca prism is a constant (90°) deviation dispersive prism. These prisms separate light beam of multiple wavelengths to single wavelength. Pellin Broca prism’s incidence angle is Brewster’s angle, which minimizes the reflection losses in P-polarized light. Hence, these are known as Brewster’s angle prisms as well.
Size = B – 20mm x A – 11mm x H – 6.4mm
Material = UV Fused silica
Clear Aperture ( mm ) = 5
Effective aperture = 80%
Surface quality = 40-20 (Scratch – dig)
Dimensional tolerance = +0.0,-0.2mm
Surface flatness = λ/4 @ 632.8nm
Angle tolerance = α – 79.5o±0.5o, β – 60o±1o
# Dispatch within 3 days
Model No: HO-PBS-5
