Holmarc’s Multiple-Order Wave Plates are made from laser grade quartz crystal.All wave plates are AR coated to increase transmission at design wavelength. The retardance of multiple-order wave plate depends on temperature, wavelength, angle of incidence and degree of collimation.
Quarter – wave plates are used to convert linearly polarized light into circularly polarized light and viceversa.

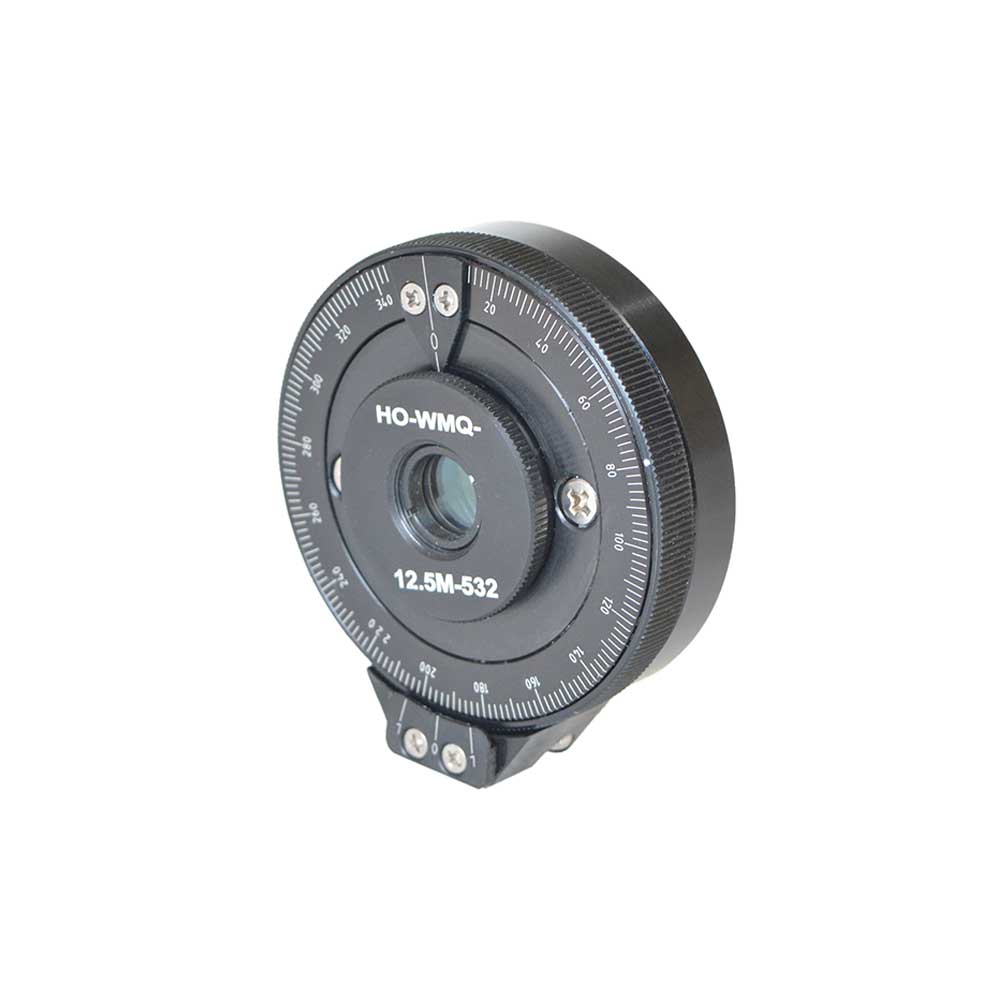

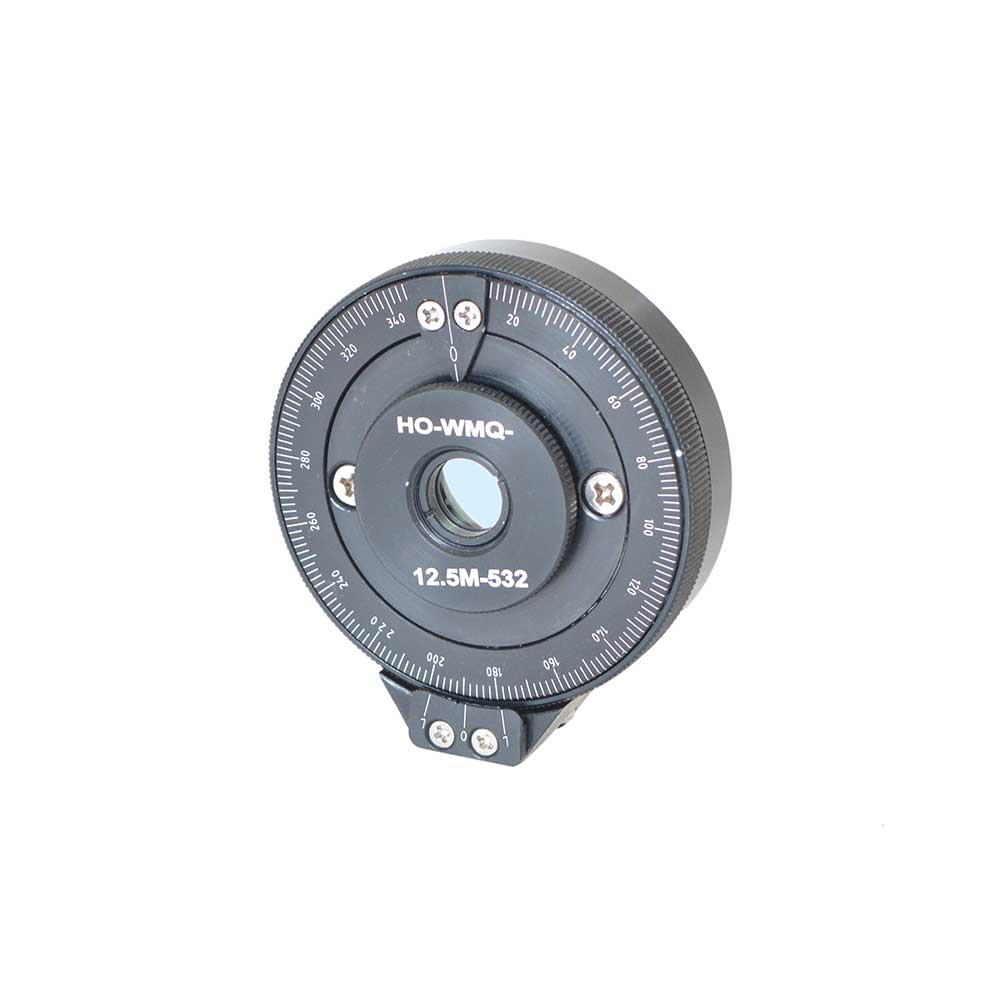

► Mounted on Wave Plate Rotator with Fast Axial Dial
► Material : Quartz crystal
► Wavelength : 532 nm
► Diameter tolerance : ± 0.2 mm
► Surface quality : 20 – 10 ( scratch – dig )
► Surface flatness : λ / 4 @ 632.8 nm
► AR coating : Multilayer, R < 0.5% @ design wavelength
► Beam deviation : < 10 arc sec
► Retardance accuracy : < λ / 200
# Dispatch within 3 days
Model No. HO-WMQ-12.5M-532 PMC-FA-25
Exworks-Kochi : Apply coupon ‘Exworks-Kochi’ in the ‘Checkout page’ or in the ‘Cart page’ in case you want to use your carrier for shipping and delivery.
