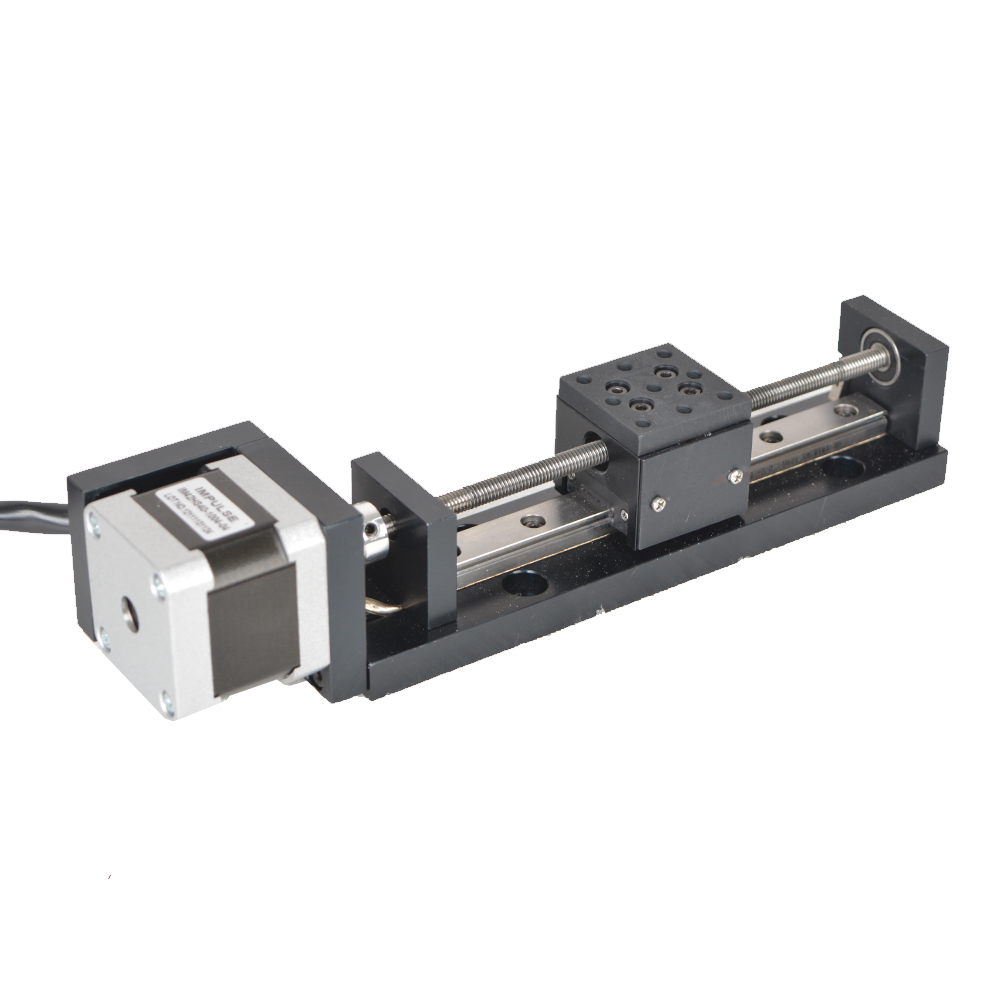

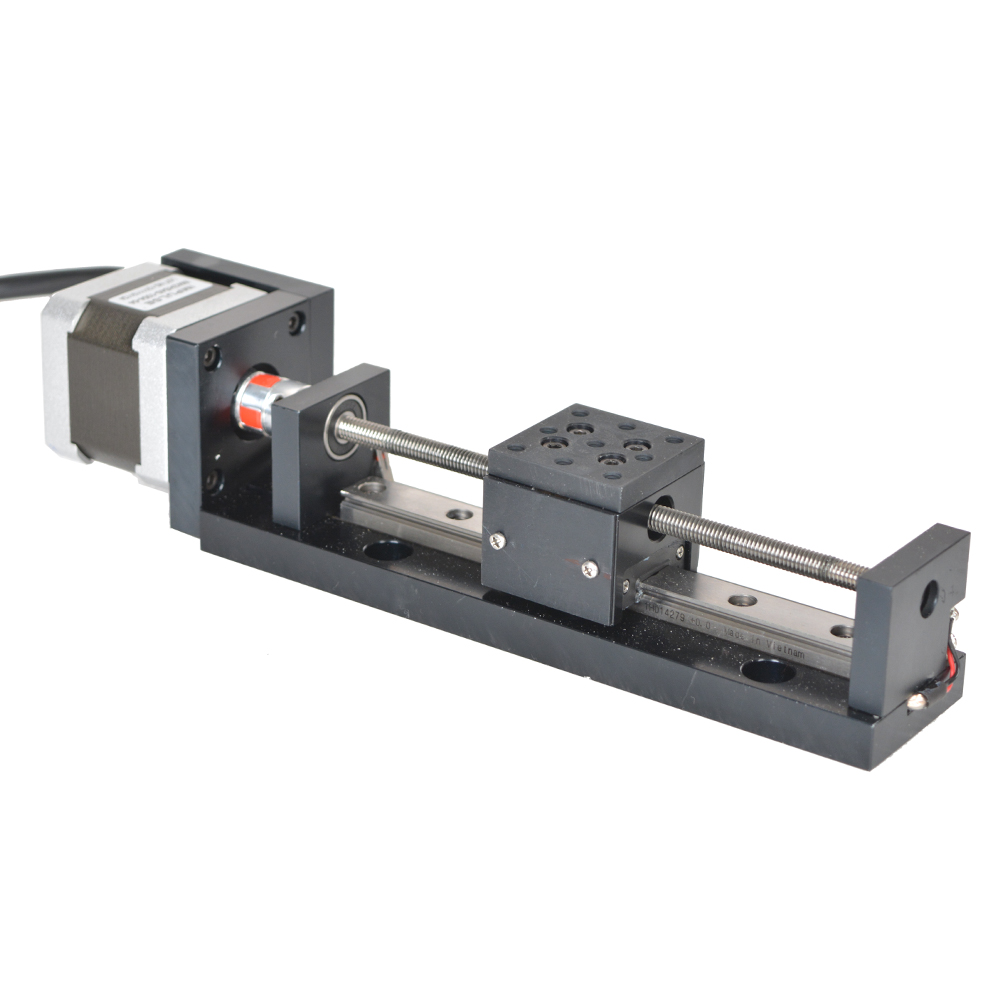

These stages use re-circulating type ball bearing guideways along with leadscrews positioned above the guideways as shown in the drawing. This configuration helps to keep the footprint as minimum as possible. In this case, width of the stage could be reduced to 35mm. Construction is in aluminum alloy with black anodized finish.
Model : RCMTS35-100-1
Micro position controller – HO-MPC
Straight Line Accuracy : +/- 20 Micron over 200 mm travel
Drive : Precision Lead screw
Construction : Aluminium Alloy B51S
Finish : Black anodized
