These linear polarizers have 25% transmittance for unpolarized light. Two crossed sheets have an average transmission of 0.04%. The sheets are neutral gray in color. It can be used as a variable attenuator.

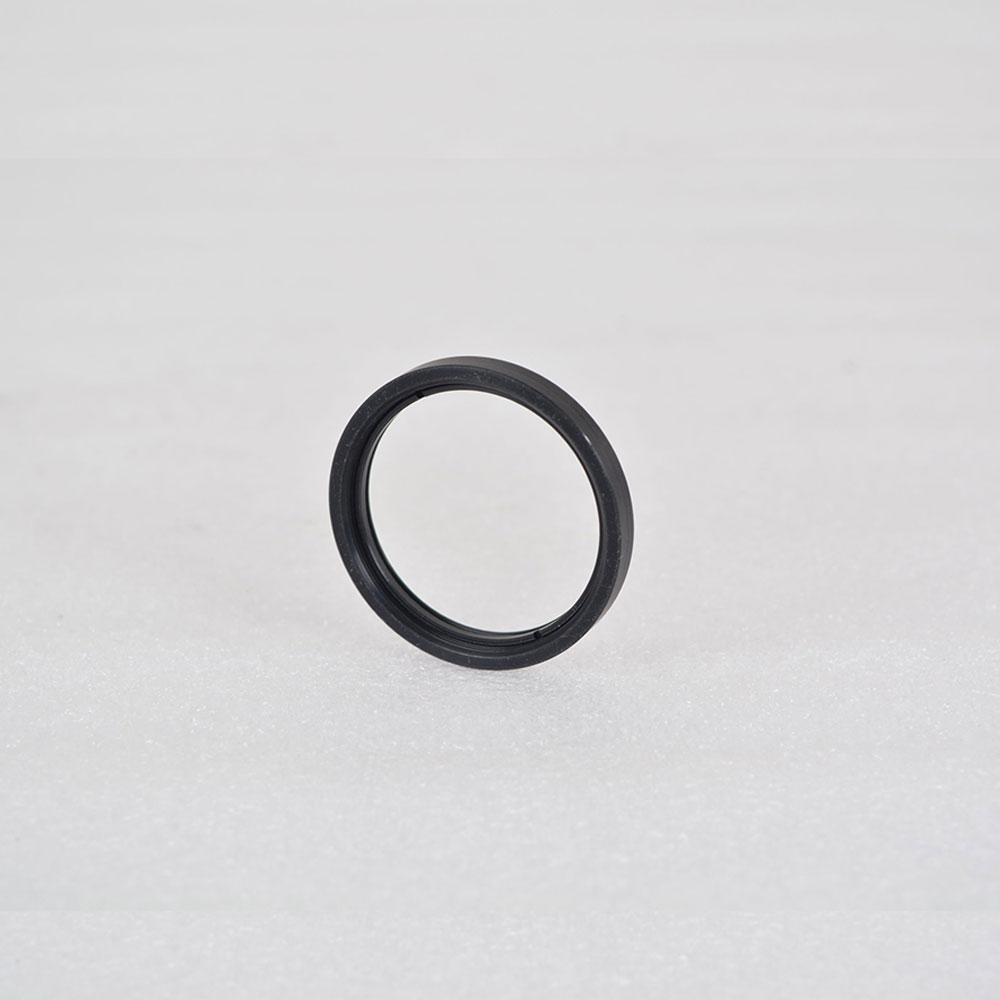

In this model, a linear film polarizer is sandwiched between two polished BK7 glass discs and mounted on a black anodized aluminium threaded mount. The mounts are made with standard threads so that it can be mounted to any Opto-mechanical mount which has a similar thread.
â–º Optical type : Transmissive
â–º Color : Neutral gray
â–º Polarization : Linear
â–º Polarizing efficiency : 99 %
â–º Wavelength : 400 – 700 nm
â–º Thickness : 0.18 mm
â–º Protective film : Both sides
► Extinction ratio : ≥ 500 : 1
â–º Mount :Â SM05
â–º Clear Aperture(mm) : 10
â–º Type : Sandwiched
â–º Diameter (mm) : 12.5
Model : HO-LFPS-12.5
# Dispatch within 3 days
