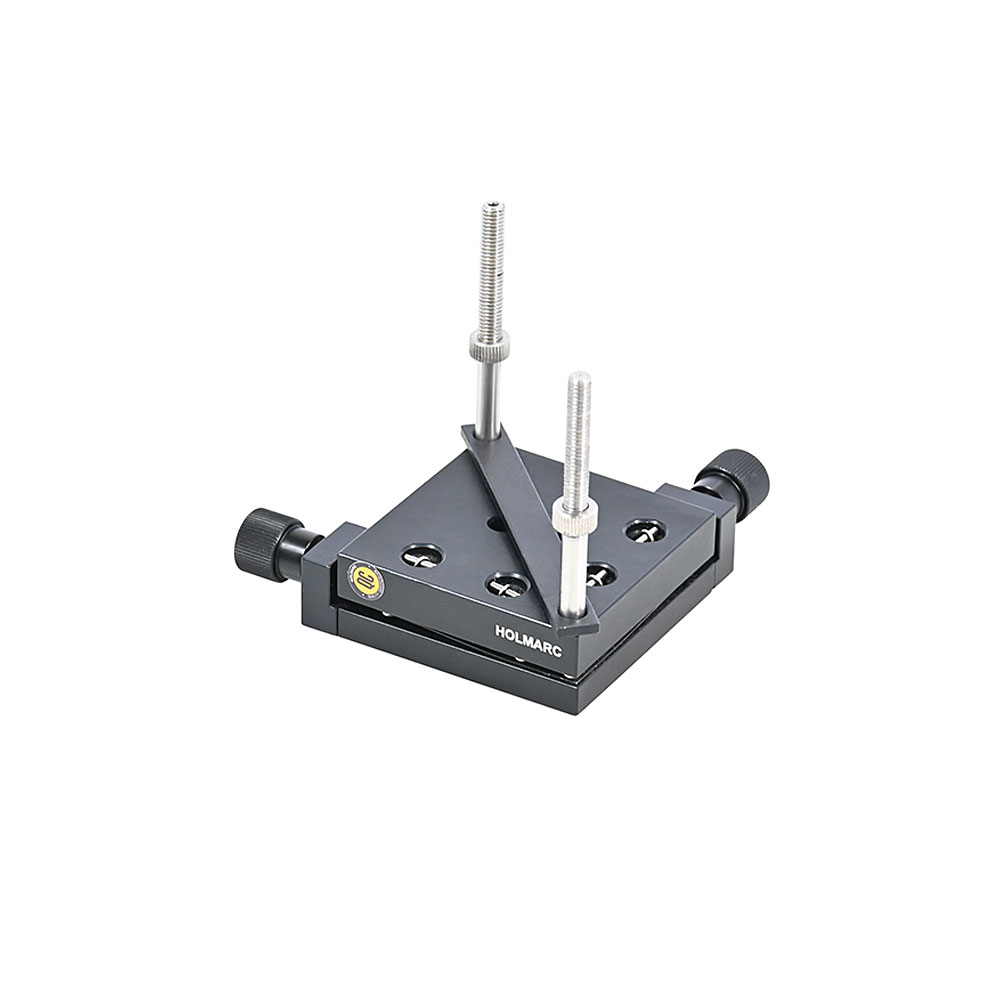

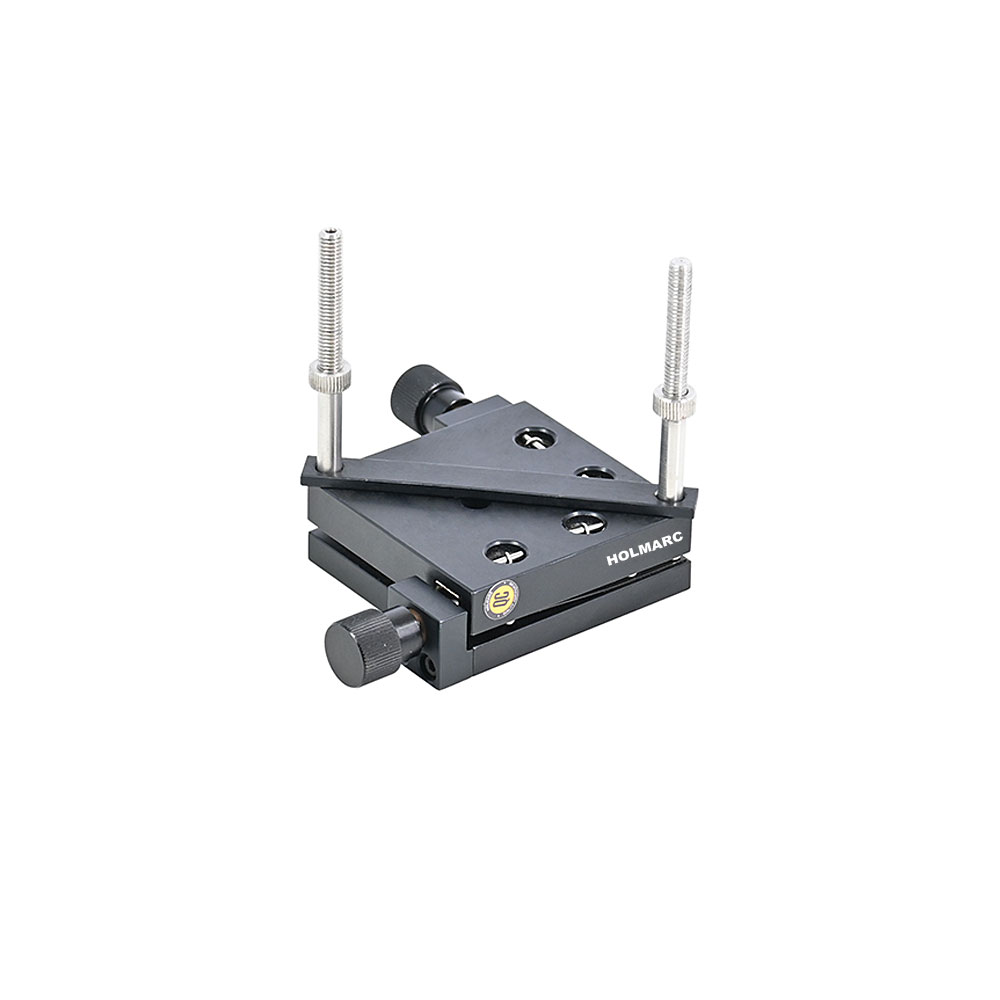

M6 and M4 tapped holes are provided on a 12.5 mm grid for mounting various optical or opto-mechanical components over the platform. M6 tapped holes are provided at the back plate of the kinematic platform for post mounting applications ( 2 vertical positions and 1 horizontal position are possible ). Suitable prism clamps are provided along with the kinematic platform.
► +/- 3 degree adjustable
► 4 arc sec. sensitivity
► Number of knobs : 2 Nos.
► Tapping Hole : M6
► Aluminium alloy
► Black anodized finish
Model : KPMD-65
