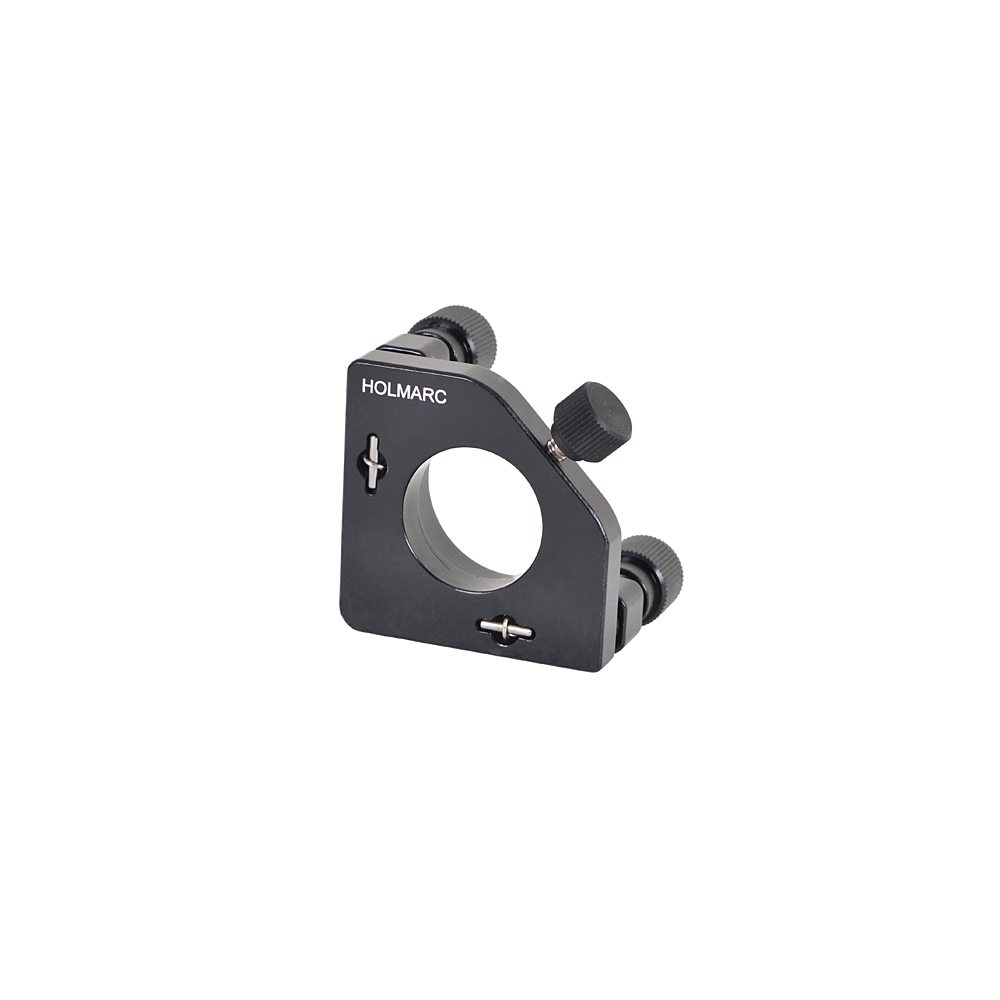

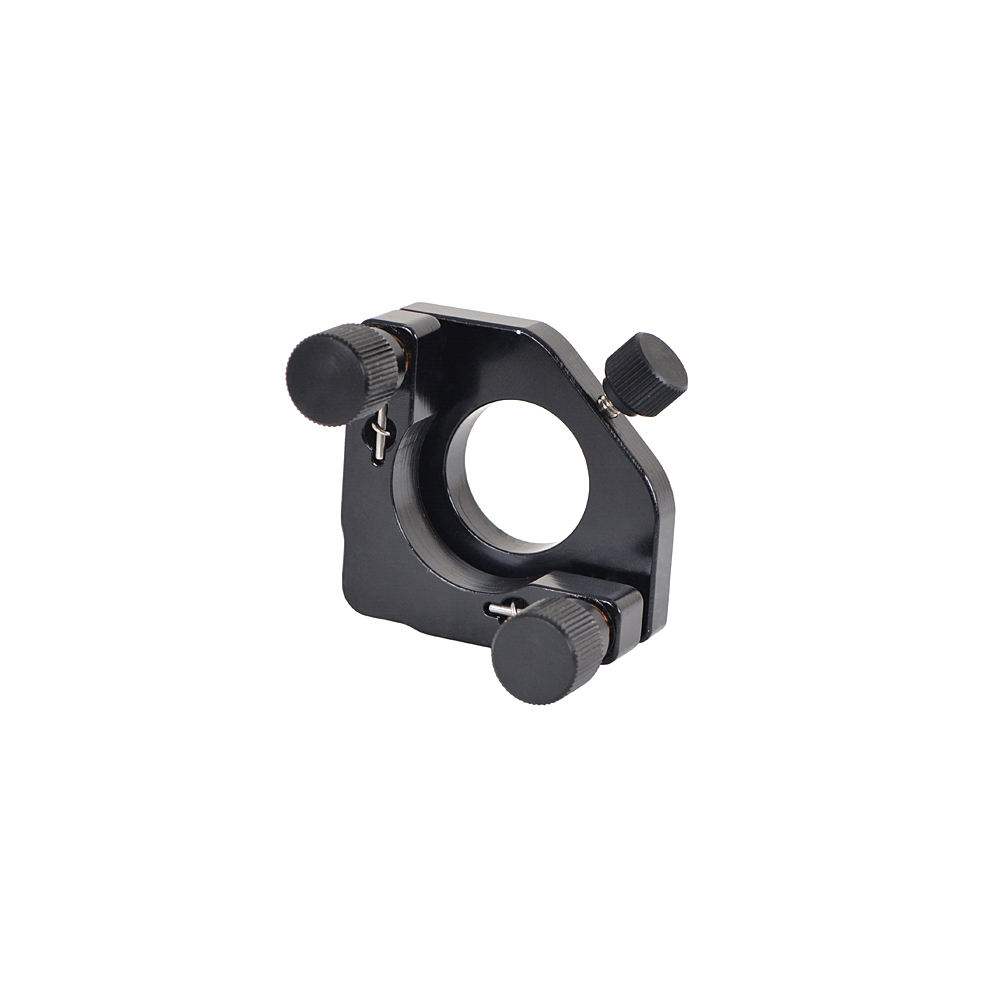

Kinematic diode laser mount can be used to position diode lasers by fine tilting the beam axis in two perpendicular planes.
► Fine adjustments : Using 80 tpi leadscrews
► Adjustment range : +/- 3°
► Sensitivity : 20 arc sec
► Construction : Aluminium alloy
► Finish : Black anodized
► Maximum diameter of the diode module : 25 mm
Model : HO-KDLM-20
