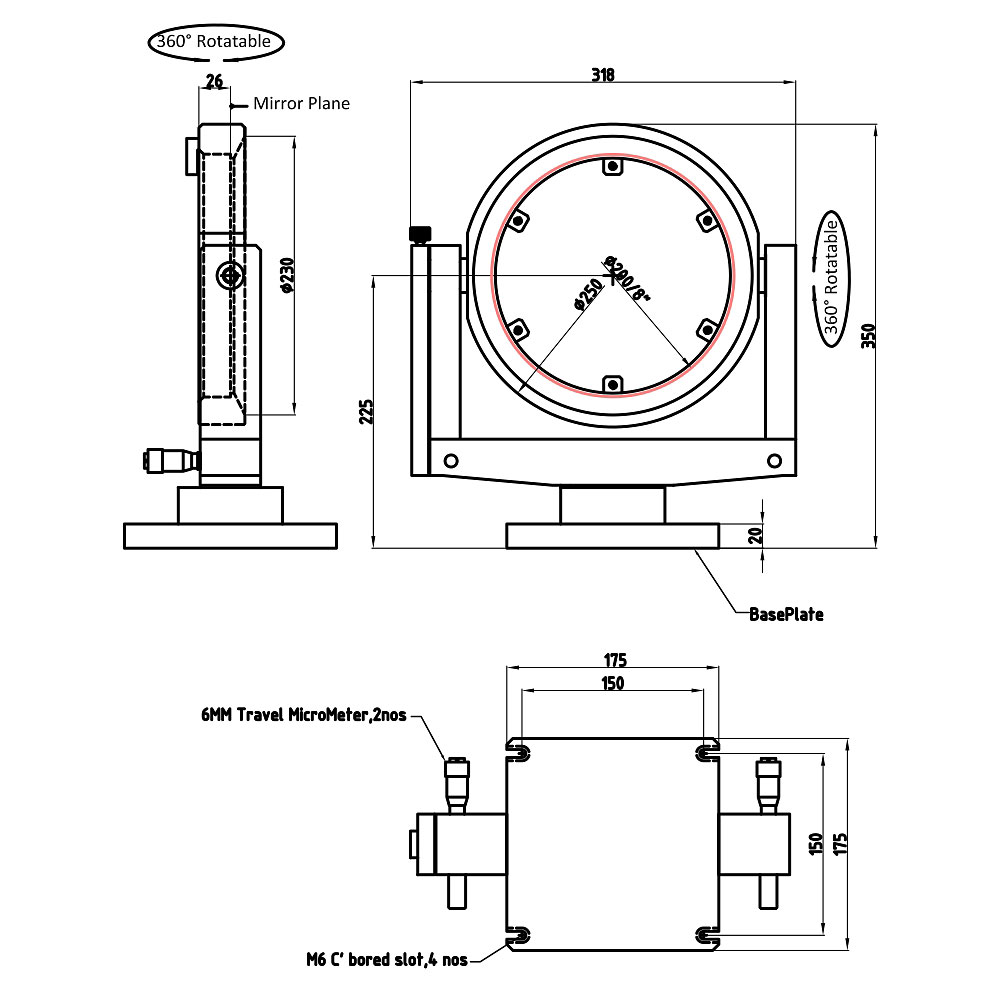

Large Gimbal Mounts are suitable for fixing large optics, with maximum diameter of 200 mm. Fine adjustment is done by a micrometer with least count of 10 microns. Switching between coarse and fine movement is by using a knob or a set-screw provided on the Gimbal mount. 200 mm / 8″ Gimbal mirror mount, can hold mirrors upto 35 mm thick .
► Coarse Travel θx / θy : 360°
► Fine Travel θx / θy : +/- 6°
► Travel Range θz : 360°
► Linear Resolution : 0.01 mm ( Least Count for micrometer )
► Sensitivity θx / θy : 4 arc sec.
► Mounting hole : M6 Slots
► Construction material : Aluminium alloy
► Finish : Black Anodized
► Optic size (mm) : 200 / 8″
► Mirror Thickness : 25
Model : GMM-200
