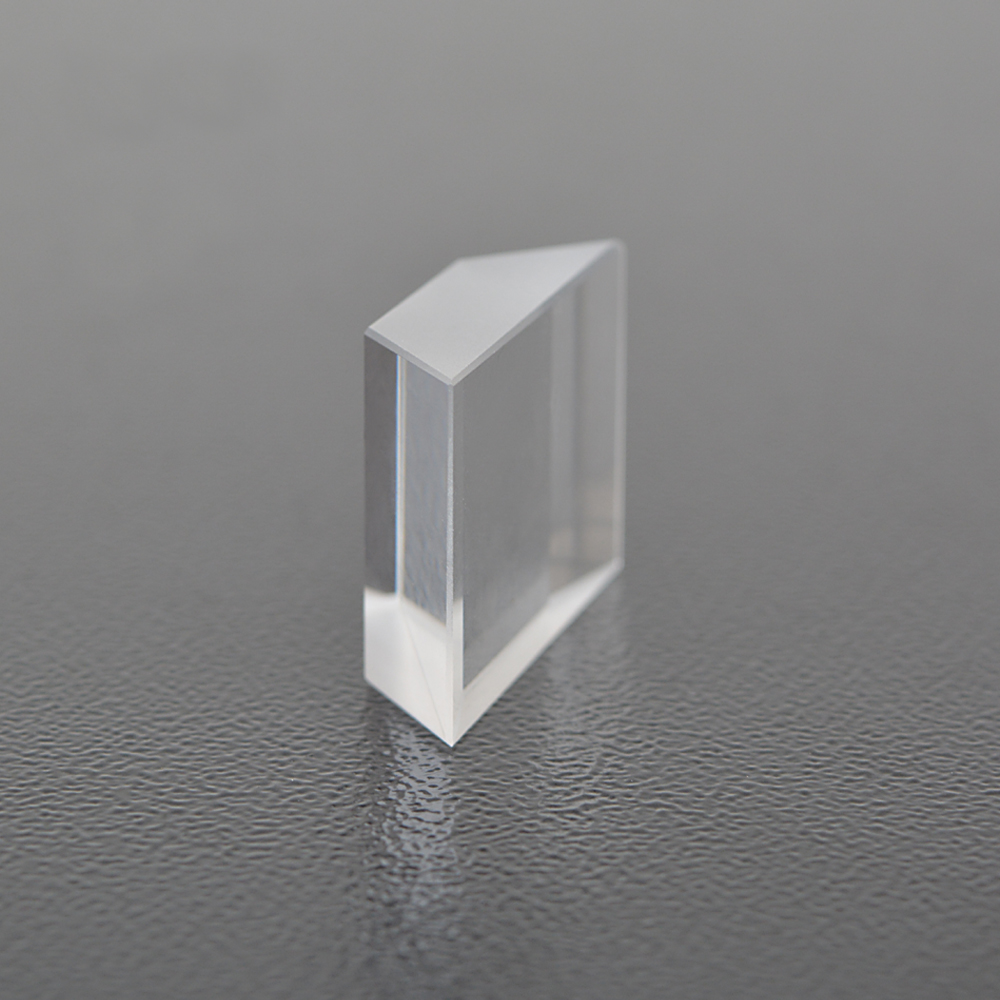

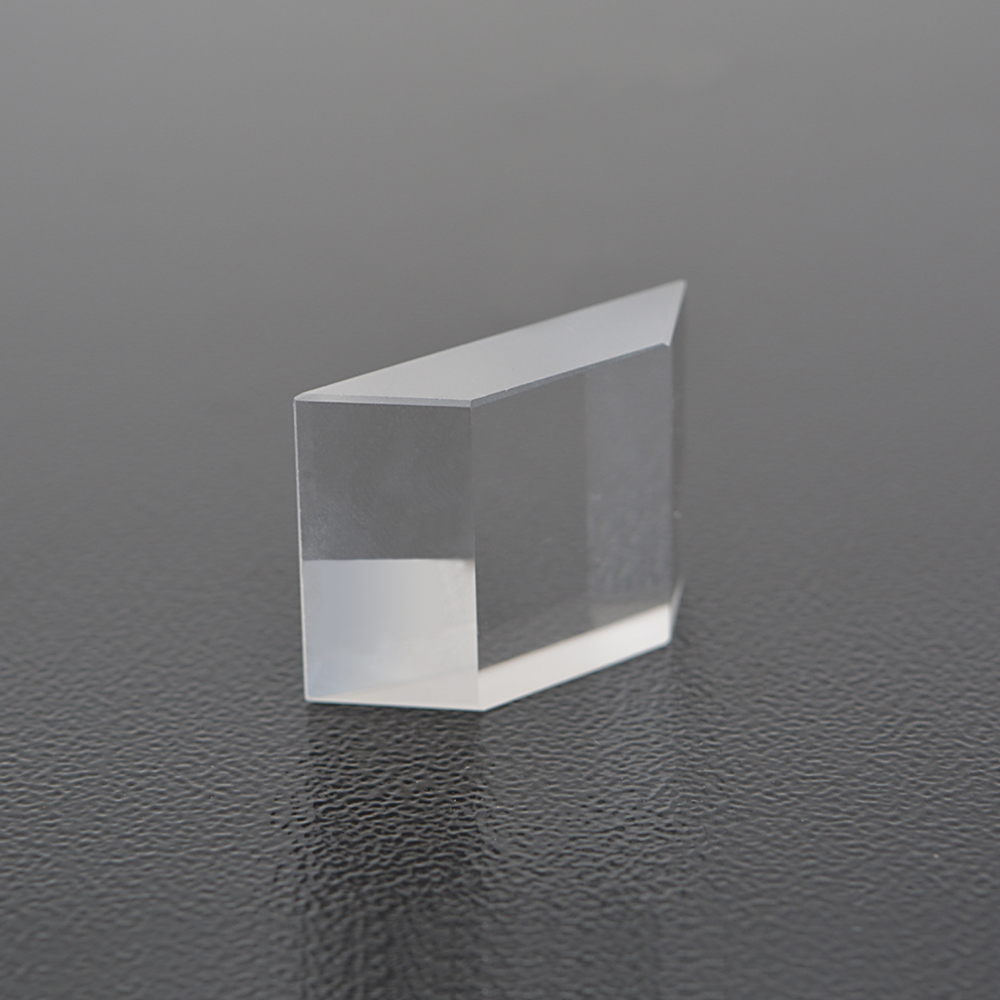

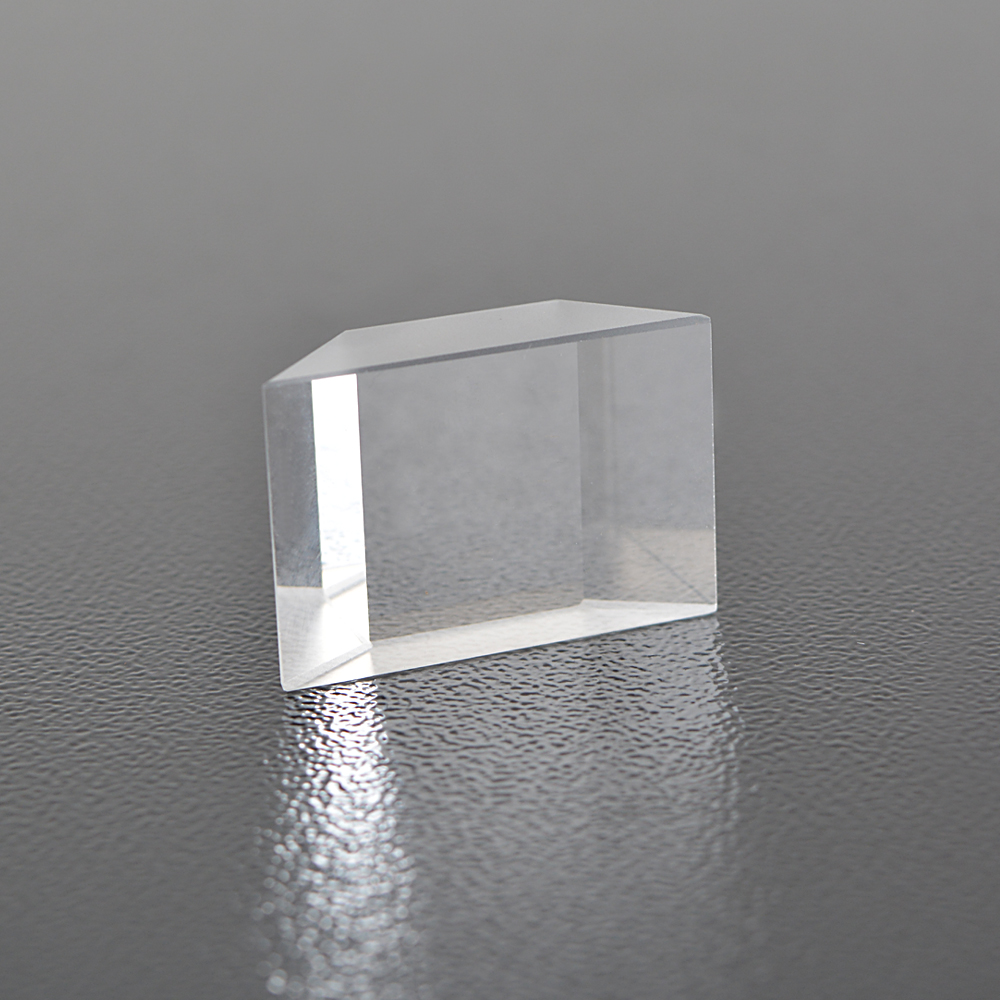

Dove Prisms rotate an image without deviating the beam in such a way that the image rotates at twice the angular rate of the prism.
► Material : BK7 or equivalent
► A = B ( mm ) : 15 mm
► L ( mm ) : 63.3
► Effective aperture : 90 %
► Surface Quality : 40 – 20 ( scratch-dig )
► Dimensional Tolerance : + 0.0, -0.2 mm
► Angle tolerance : +/- 3 arc min
► Surface flatness : λ / 4 @ 632.8 nm
► Perpendicularity : +/- 3 arc min
► Protective chamfer : 0.2 mm x 45°
► Coating : Uncoated
# Dispatch within 3 days
Model No. HO-DP-15
