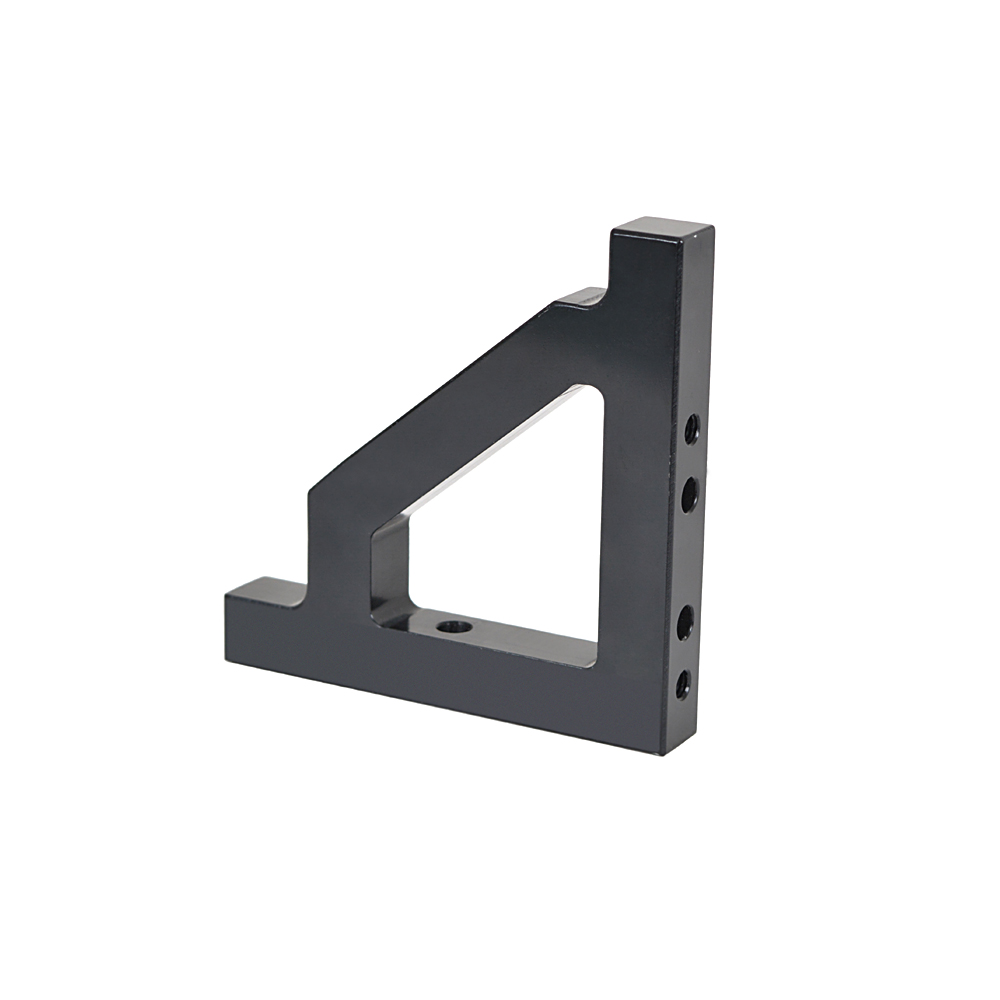

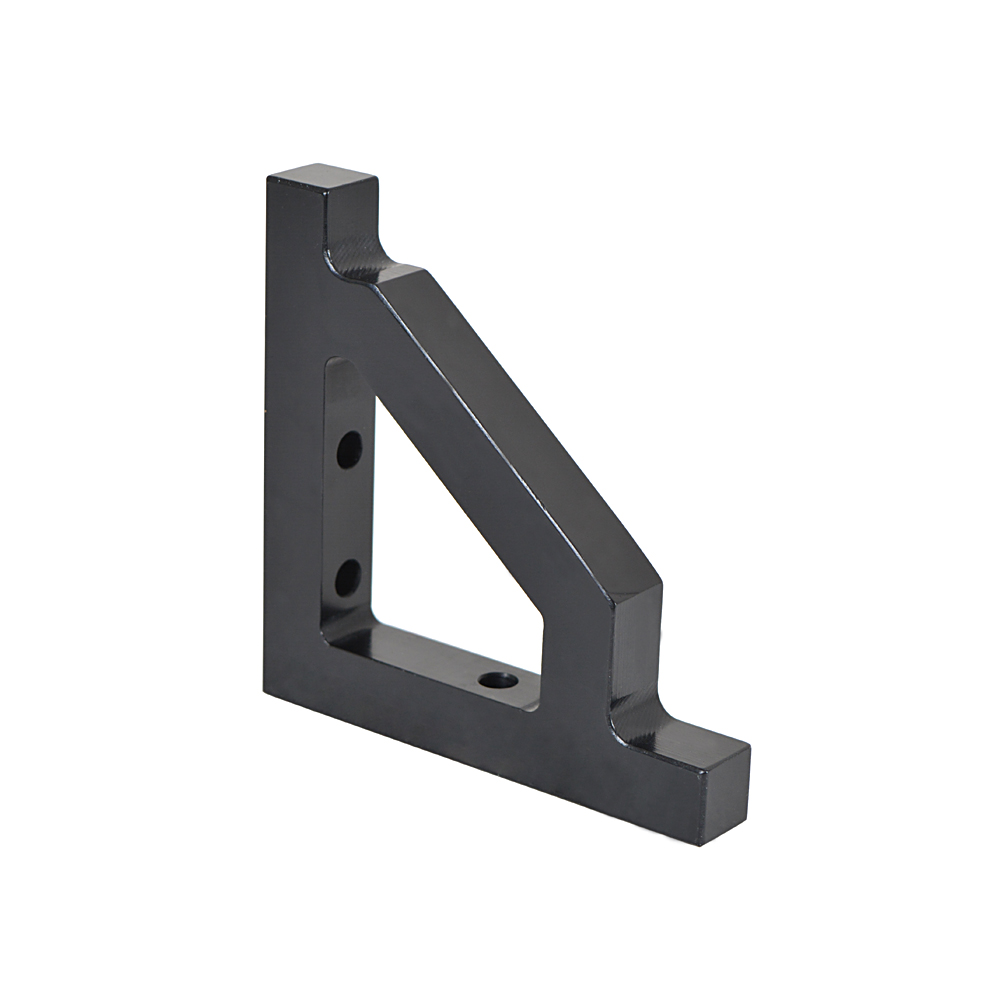

HOLMARC Angle Brackets are rigid, angled mounting plates with slotted faces. 90˚ angle bracket is designed to mount aluminium breadboard perpendicular to optical table for achieving vertical working surface.
90° Bracket : is designed to mount aluminium breadboard perpendicular to optical table for achieving vertical working surface.
Model : 90B-100-AL
► Material : Aluminium Alloy
► Treatment : Anodized
► Color : Black
► Machining Tolerance : +/- 0.3 mm over 300 mm length
► Thickness : 15mm +/- 0.5mm
► Mounting angle : 90˚
► Surface Finish : Satin Finish
► Mounting Holes : M6 tapped holes at 25mm Grid
